Trailer Hitch: Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

NOTE: Removal steps in this procedure may contain installation details.

Remove the rear bumper. Refer to: Rear Bumper .

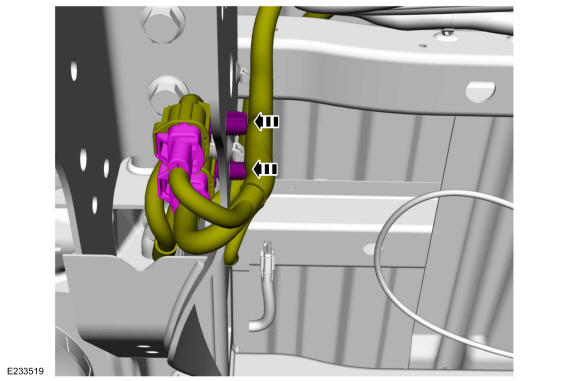

Disconnect the electrical connector LH side and position aside the wiring harness.

Courtesy of FORD MOTOR COMPANY

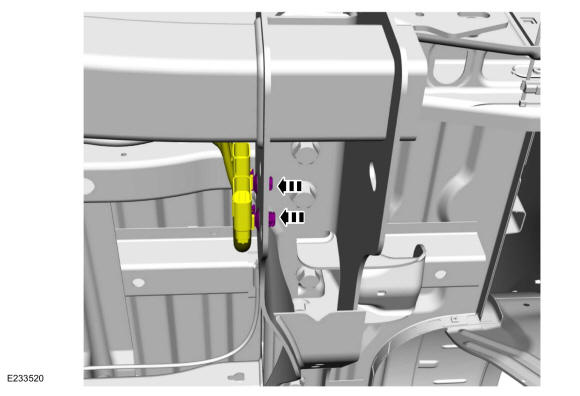

Position aside the wiring harness on the RH side.

Courtesy of FORD MOTOR COMPANY

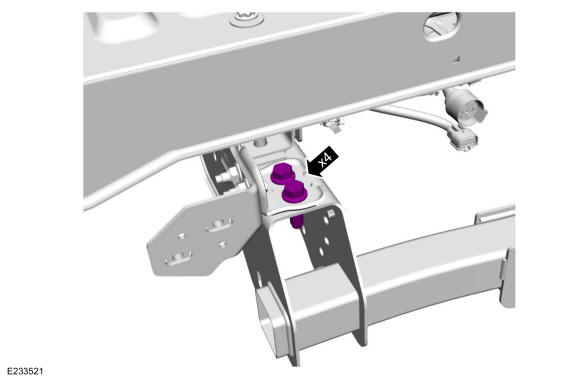

Remove the bumper bracket-to-trailer hitch bolts on both sides.

Courtesy of FORD MOTOR COMPANY

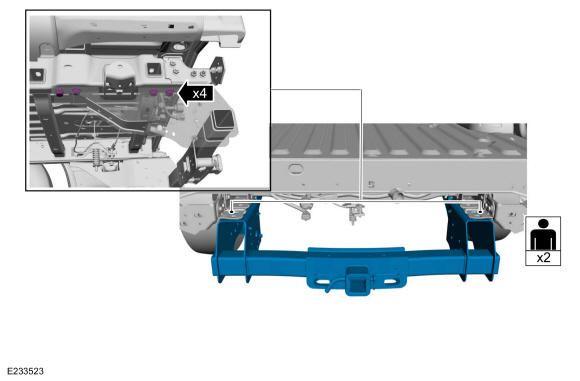

With help of an assistant, remove the trailer hitch-to-frame bolts on both sides and remove the trailer hitch assembly.
Torque: 203 lb.ft (275 Nm)

Courtesy of FORD MOTOR COMPANY
