Trailer Hitch - Fifth Wheel: Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

NOTE: Removal steps in this procedure may contain installation details.

If equipped, Remove the pickup bed. Refer to: Pickup Bed .

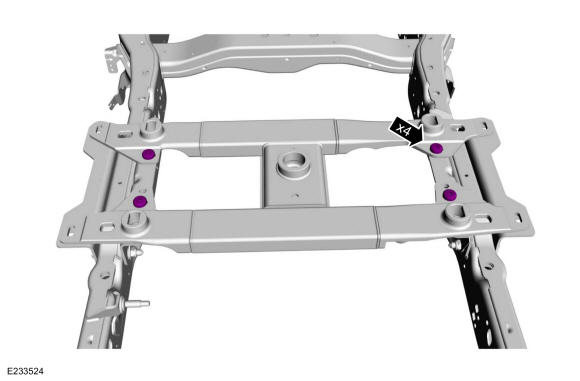

Remove the hitch-to-inner bracket bolts.

Courtesy of FORD MOTOR COMPANY

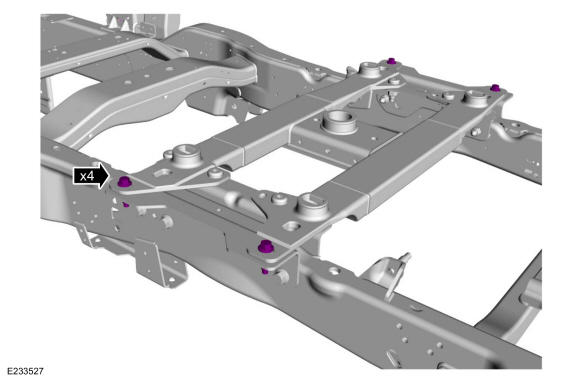

Remove the hitch-to-outer bracket bolts.

Courtesy of FORD MOTOR COMPANY

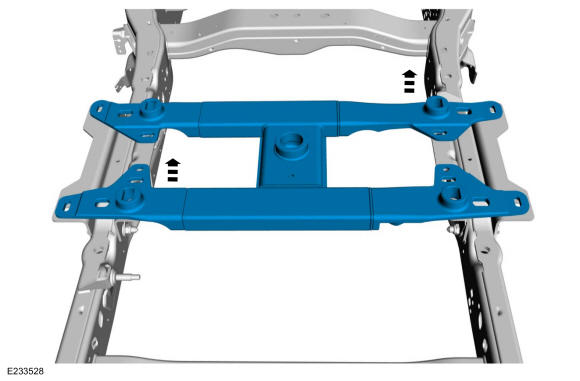

Remove the hitch assembly.

Courtesy of FORD MOTOR COMPANY
NOTE: LH side shown, RH side similar.

NOTE: The inner bracket is welded to the frame assembly and is not serviceable.

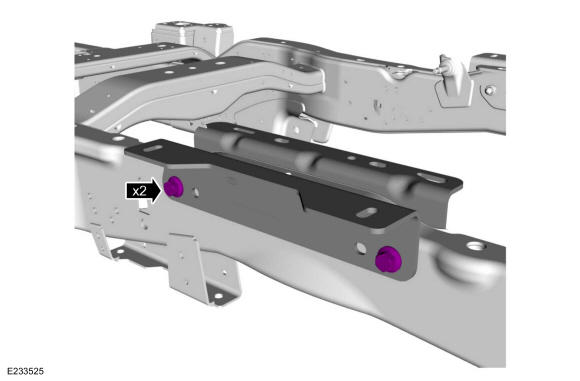

Remove the outer bracket bolts.

Courtesy of FORD MOTOR COMPANY

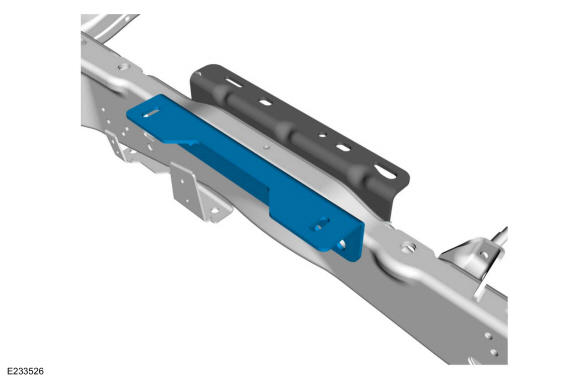

Remove the outer bracket as required.

Courtesy of FORD MOTOR COMPANY
