Trailer Hitch - Fifth Wheel: Installation
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

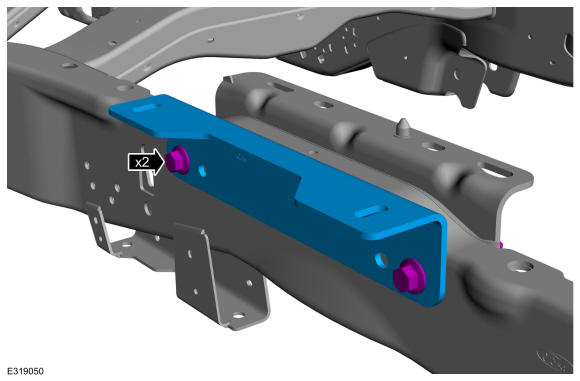

- On both sides. Install the outer bracket.
Torque: 18 lb.ft (25 Nm)
-

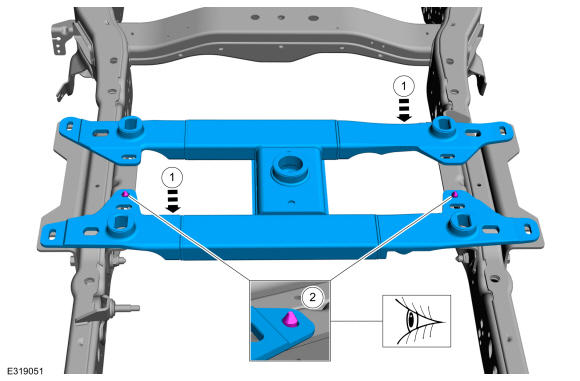

- Install the hitch assembly.
- Align crossmember to the locator pin on each side of the frame.

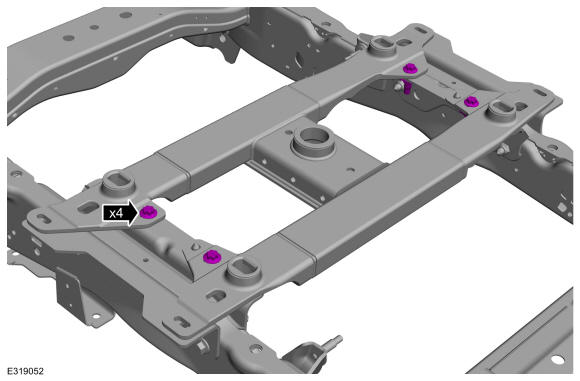

- Install the hitch-to-inner bracket bolts.
Torque: 173 lb.ft (235 Nm)

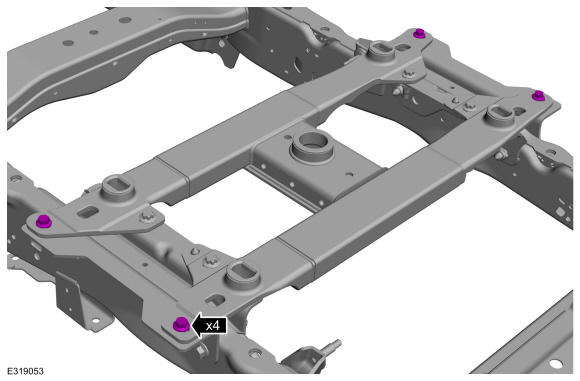

- Install the hitch-to-outer bracket bolts.
Torque: 111 lb.ft (150 Nm)

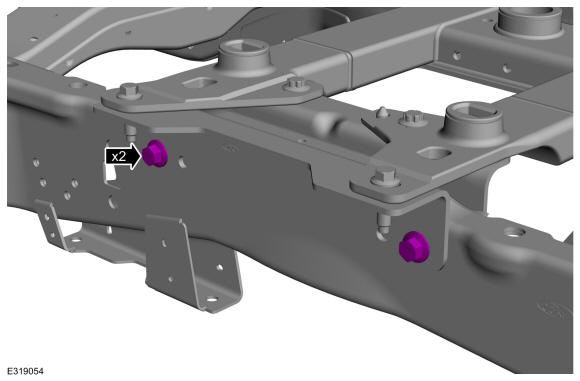

- On both sides. Tighten the outer bracket bolts.
Torque: 184 lb.ft (250 Nm)
