Front End Sheet Metal (FESM) Body Mount LH/RH

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

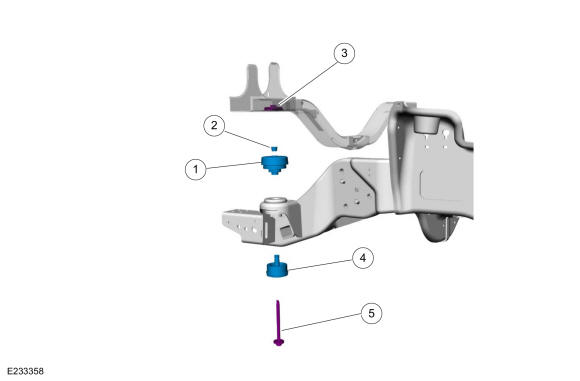

GFD412488Courtesy of FORD MOTOR COMPANY
Item  Description  Torque
1 Upper insulator --
2 Cap --
3 Body retainer cage nut --
4 Lower insulator --
5 Body mount bolt 103 Nm (76 lb-ft)
