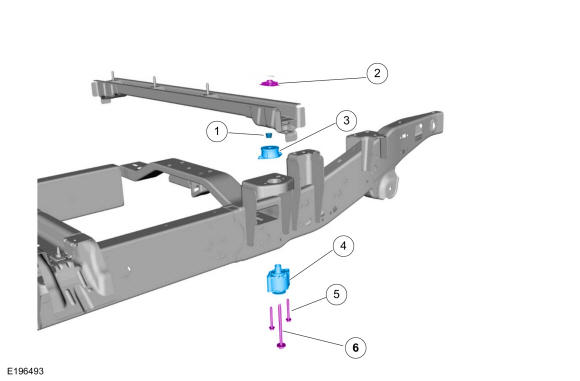

Body Mount -- No. 3, (LH/RH Pickup Super Cab and Crew Cab)
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
With hydraulic mounts.
| Item | Description | Torque |
|---|---|---|
| 1 | Cap | -- |
| 2 | Body retainer cage nut | -- |
| 3 | Upper insulator | -- |
| 4 | Hydraulic body mount | -- |
| 5 | Body mount bolt (2 required) | 63 Nm (46 lb-ft) |
| 6 | Body mount bolt | 103 Nm (76 lb-ft) Single Rear Wheel vehicle, 103 Nm (76 lb-ft) plus 90 deg. angle Dual Rear Wheel vehicle |
