Wheel Studs - Vehicles With: Dual Rear Wheels: Installation

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

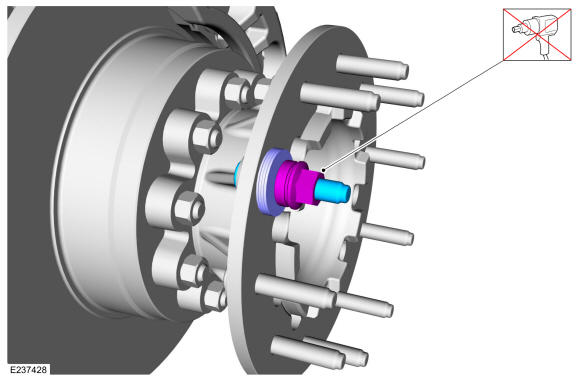

NOTE: Make sure to use washers that have an ID that is larger than the OD of the wheel stud serrations. Use enough washers (approximately 3 to 4) to allow the wheel stud to fully seat against the hub flange.

Install the new wheel stud.
- Tighten the wheel nut until the wheel stud is seated against the hub flange.
- Discard the wheel nut.
Courtesy of FORD MOTOR COMPANY
Install the wheel and tire. Refer to: Wheel and Tire - Vehicles With: Dual Rear Wheels .
