Wheel Knuckle: Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Suspension fasteners are critical parts that affect the performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the front wheel bearing and wheel hub. Refer to: Front Wheel Bearing and Wheel Hub .
  2. NOTE: LH side shown, RH side similar.

    If equipped. Disconnect the pulse vacuum hub hose.

    GFD404693Courtesy of FORD MOTOR COMPANY
  3. Remove the axle shaft seal. Refer to: Axle Shaft Seal .
  4. NOTE: LH side shown, RH side similar.

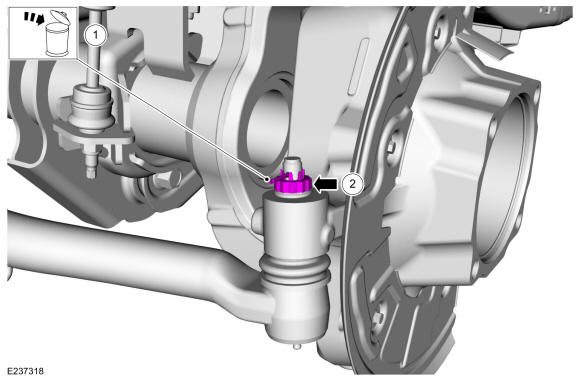

    1. Remove and discard the tie rod end cotter pin.
    2. Remove the tie rod end nut retainer.

    GFD404633Courtesy of FORD MOTOR COMPANY
  5. NOTE: LH side shown, RH side similar.

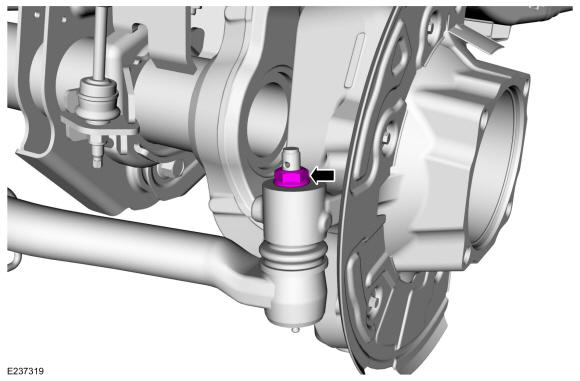

    Remove the tie rod end nut.

    GFD404634Courtesy of FORD MOTOR COMPANY
  6. NOTE: If servicing LH wheel knuckle.

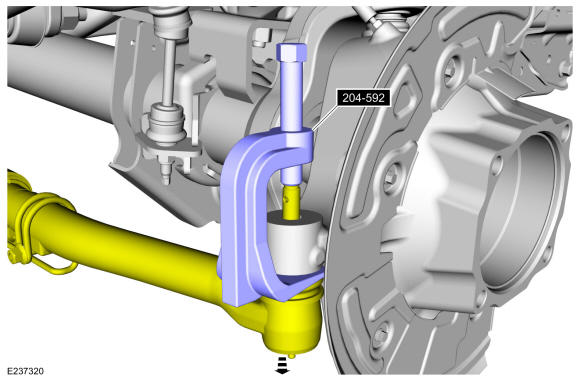

    Disconnect the LH outer tie rod end from the wheel knuckle. Use Special Service Tool: 204-592 Separator, Lower Arm Ball Joint.

    GFD404635Courtesy of FORD MOTOR COMPANY
  7. NOTE: If servicing RH wheel knuckle.

    Disconnect the RH outer tie rod end and drag link from the wheel knuckle. Use Special Service Tool: 211-023 (T74P-3044-A1) C-Frame and Screw.

    GFD404636Courtesy of FORD MOTOR COMPANY

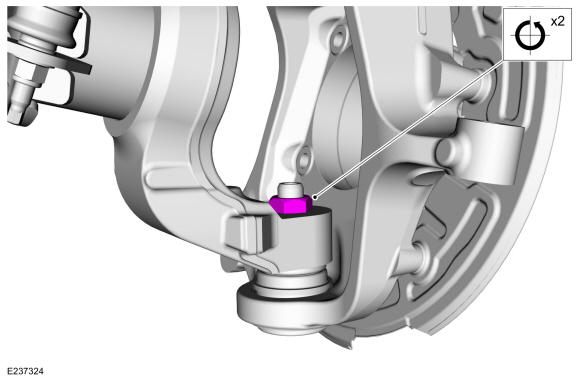

  8. Loosen, but do not remove the lower ball joint nut. Loosen: approximately: 2 turn(s)
    GFD404639Courtesy of FORD MOTOR COMPANY

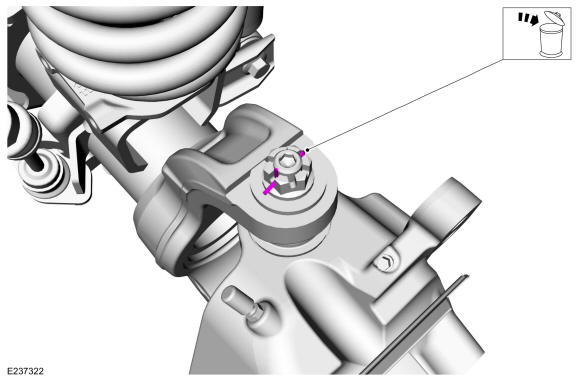

  9. Remove and discard the upper ball joint cotter pin.
    GFD404637Courtesy of FORD MOTOR COMPANY
  10. Remove the upper ball joint nut.
    GFD404638Courtesy of FORD MOTOR COMPANY
  11. NOTE: To prevent damage to the ball joint seal and the ball joint socket, do not use a pickle fork-type remover to loosen the ball joints.

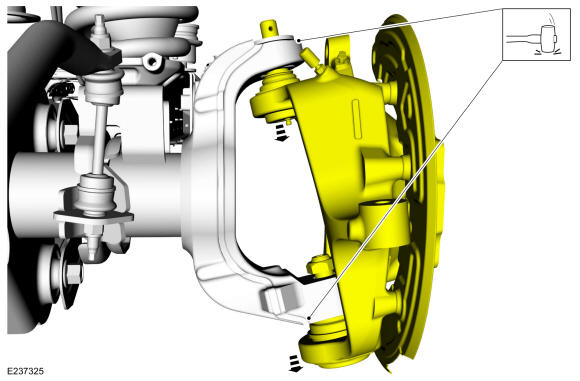

    Strike the lower and upper end of the axle to loosen the ball joints and the camber adjustment sleeve.

    GFD404640Courtesy of FORD MOTOR COMPANY

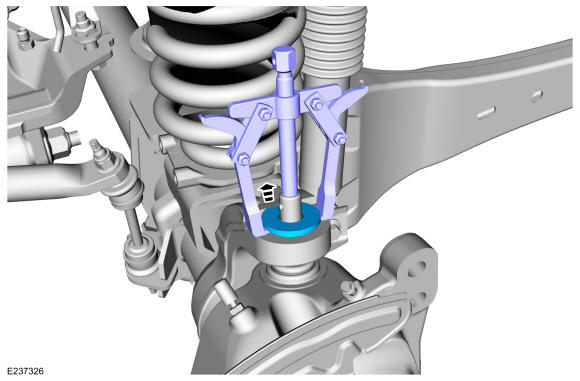

  12. Remove the camber adjustment sleeve.. Use the General Equipment: Two Leg Puller
    GFD404641Courtesy of FORD MOTOR COMPANY

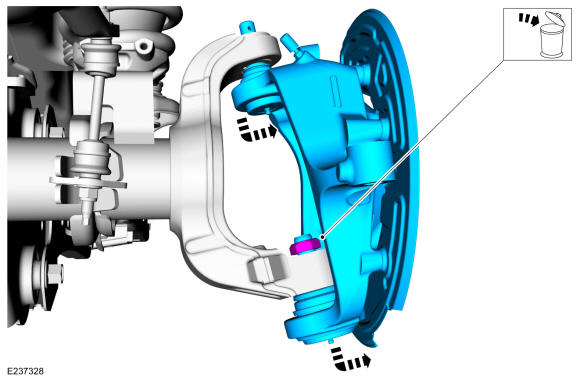

  13. Remove and discard the lower ball joint nut and remove the front wheel knuckle.
GFD404642Courtesy of FORD MOTOR COMPANY
