Front Wheel Bearing and Wheel Hub: Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Suspension fasteners are critical parts that affect the performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.

NOTE: Removal steps in this procedure may contain installation details.

Remove the brake disc. Refer to: Brake Disc .
Remove the hublock. Refer to: Hublock .

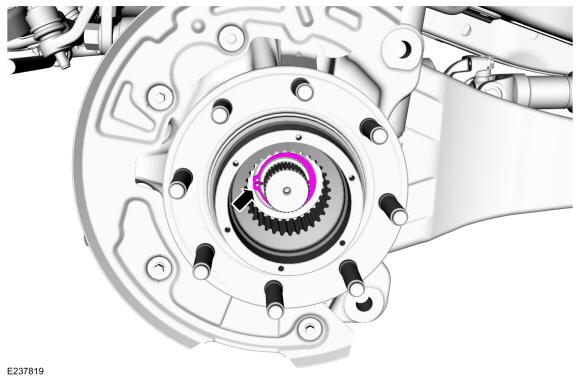

Remove the axle shaft snap ring.. Use the General Equipment: Snap Ring Pliers

Courtesy of FORD MOTOR COMPANY
Remove the wheel speed sensor bolts and position the wheel speed sensor electrical harness aside.
Torque: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY

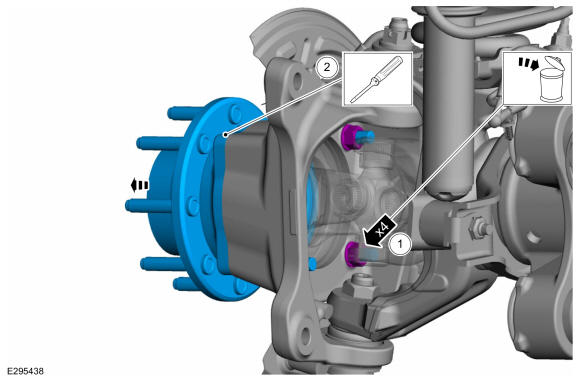

1. NOTE: Tighten new nuts in a cross pattern.

  Remove and discard the wheel hub nuts.

  Torque: 133 lb.ft (180 Nm)
2. Using a large flat headed screwdriver, pry out the front wheel bearing and wheel hub assembly.. Use the General Equipment: Flat Headed Screw Driver
Courtesy of FORD MOTOR COMPANY

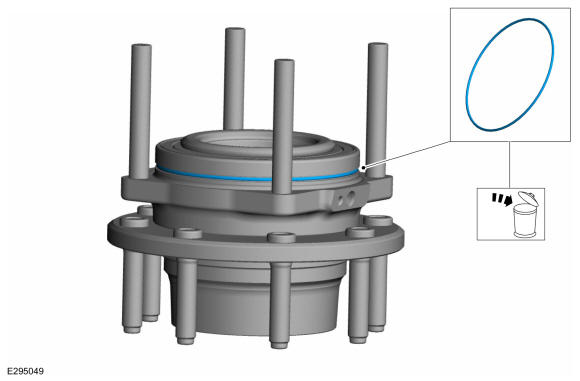

Remove and discard the O-ring.

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that the wheel hub mounting surfaces are clean and free of foreign material or excessive runout and/or vibration may occur.

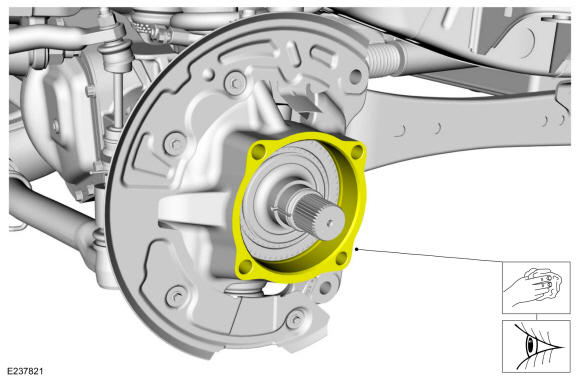

Clean and inspect the wheel hub mounting surfaces.

Courtesy of FORD MOTOR COMPANY
