Front Stabilizer Bar Bushing: Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Suspension fasteners are critical parts that affect the performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.

NOTE: Removal steps in this procedure may contain installation details.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

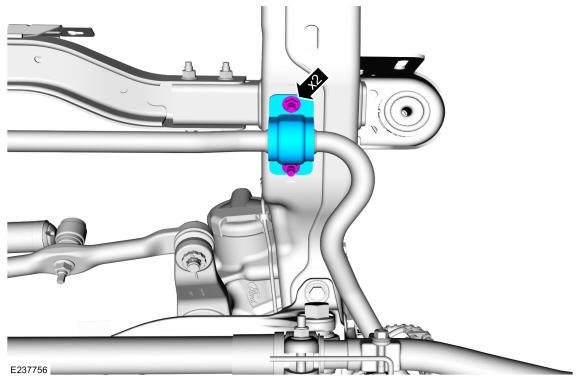

On both sides. Remove the front stabilizer bar bracket nuts and brackets.
Torque: 41 lb.ft (55 Nm)

Courtesy of FORD MOTOR COMPANY

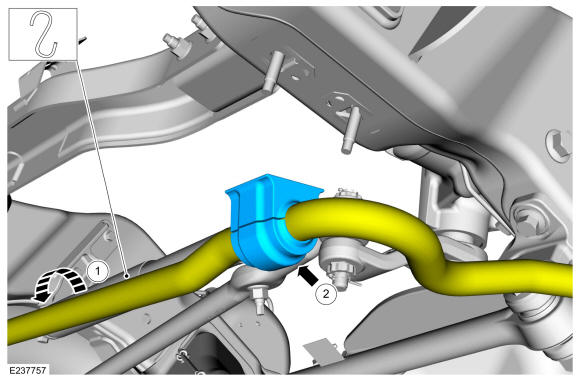

1. Lower and support the front stabilizer bar.
2. NOTE: Do not use any lubrication on the stabilizer bar or the bushings or damage to the bushings may occur

  NOTE: Stabilizer bar bushings must be installed with slits facing the front of the vehicle.

  Remove the front stabilizer bar bushing.

Courtesy of FORD MOTOR COMPANY
