Ball Joint: Installation

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. NOTE: To avoid damage to the components, do not use heat to aid ball joint installation
    NOTE: The upper ball joint must be installed first.

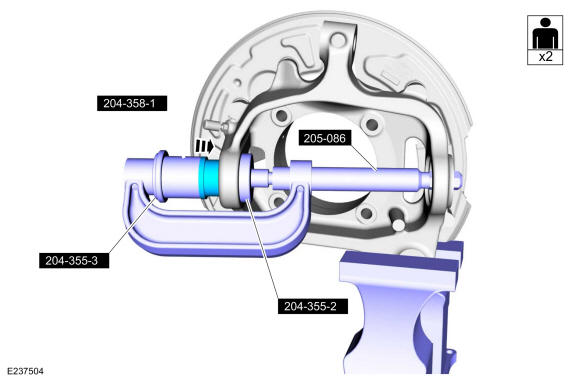

    With the help of an assistant, Install the upper ball joint. Use Special Service Tool: 204-355 Remover/Installer, Ball Joint., 205-086 (T74P-4635-C) Installer/Remover, C-Frame and Screw.. Use the General Equipment: Vise

    GFD404667Courtesy of FORD MOTOR COMPANY

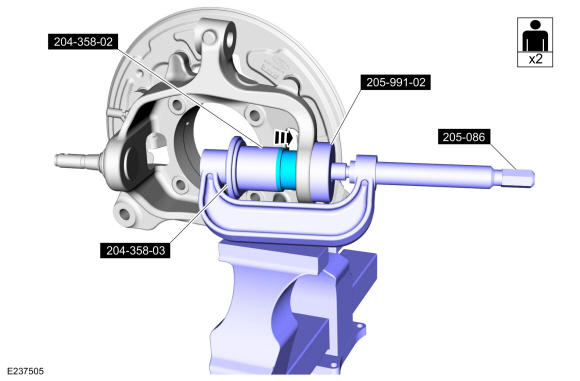

  2. With the help of an assistant, Install the lower ball joint. Use Special Service Tool: 204-358 Remover/Installer, Ball Joint., 205-086 (T74P-4635-C) Installer/Remover, C-Frame and Screw.. Use the General Equipment: Vise
    GFD404668Courtesy of FORD MOTOR COMPANY

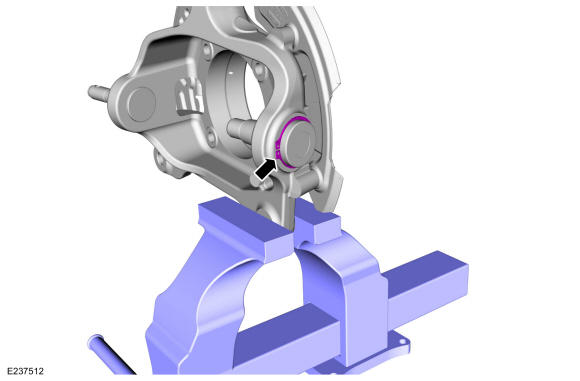

  3. Install the snap ring on the lower ball joint.. Use the General Equipment: Vise. Use the General Equipment: Snap Ring Pliers
    GFD404669Courtesy of FORD MOTOR COMPANY
  4. Install the wheel knuckle. Refer to: Wheel Knuckle .
