Wheel Studs - Vehicles With: Single Rear Wheels: Installation

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Align the serrations in the disc brake rotor flange made by the original wheel stud.

NOTE: The flat side of the wheel stud head must be facing the wheel bearing.

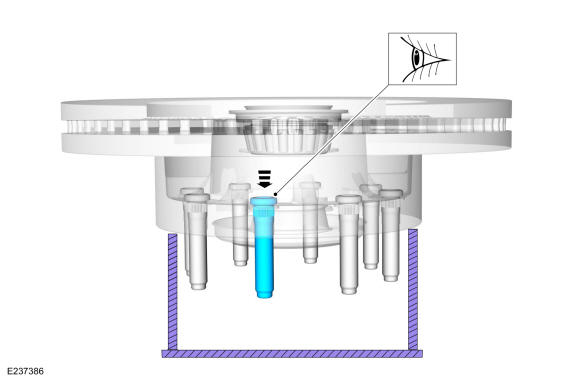

Press the new wheel stud into the wheel bearing and wheel hub flange until fully seated. Use the General Equipment: Hydraulic Press

Courtesy of FORD MOTOR COMPANY
Install the front wheel bearing and wheel hub. Refer to: Front Wheel Bearing and Wheel Hub - F-250/F-350 .
