Track Bar Bushing: Removal
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the track bar. Refer to: Track Bar . Refer to: Track Bar - Vehicles With: Integral Ball Joint .
-
NOTE: To avoid damage to the components, do not use heat to aid track bar bushing removal.

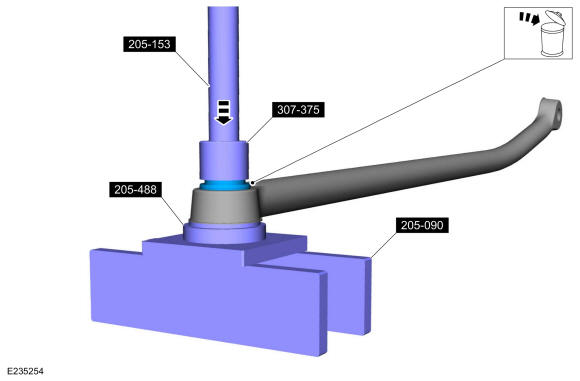

Remove and discard the track bar bushing. Use Special Service Tool: 205-090 (T75L-1165-B) Plate, Bearing/Oil Seal., 205-153 (T80T-4000-W) Handle., 205-488 Installer, Drive Pinion Bearing., 307-375 Installer, Needle Bearing. Use the General Equipment: Hydraulic Press
-
NOTE: Use clean shop rag.

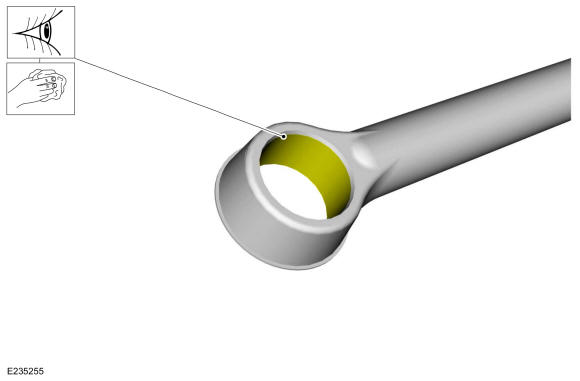

Clean and inspect the track bar.
