Track Bar Ball Joint - Vehicles With: Integral Ball Joint: Installation
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The track bar ball joint is installed with the dust boot attached to the ball joint. Do not damage the track bar ball joint boot during installation.

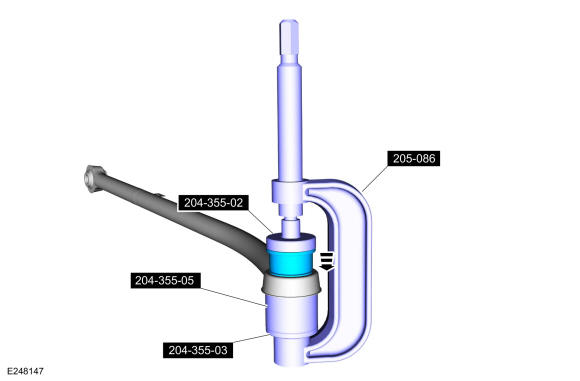

- Install the track bar ball joint. Use Special Service Tool: 204-355 Remover/Installer, Ball Joint., 205-086 (T74P-4635-C) Installer/Remover, C-Frame and Screw.
- Install the track bar. Refer to: Track Bar - Vehicles With: Integral Ball Joint .
