Radius Arm - F-250 F-350: Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Suspension fasteners are critical parts that affect the performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.

NOTE: Removal steps in this procedure may contain installation details.

Remove the spring. Refer to: Spring - F-250/F-350 .
NOTE: LH shown, RH similar.

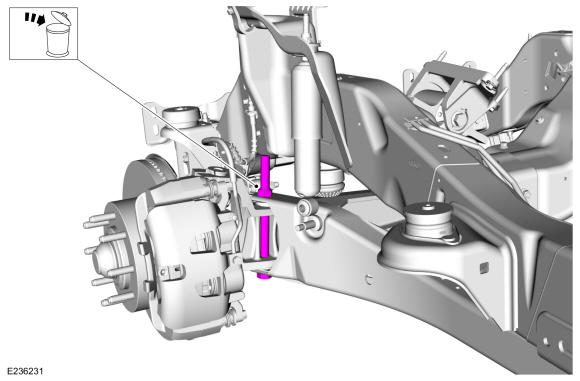

Remove and discard the radius arm forward nut and bolt.

Torque: 295 lb.ft (400 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Tighten the radius arm rearward nut with the suspension at curb height or damage to the bushing may occur.

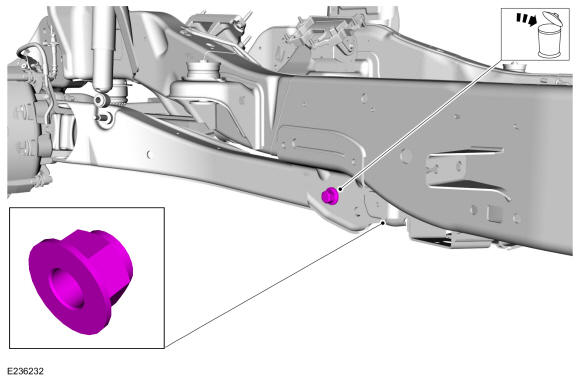

Remove and discard the radius arm rearward nut and bolt.

Torque: 221 lb.ft (300 Nm)

Courtesy of FORD MOTOR COMPANY
Remove the radius arm.

Courtesy of FORD MOTOR COMPANY
