Front Wheel Bearing and Wheel Hub - F-250 F-350: Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Suspension fasteners are critical parts that affect the performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.

NOTE: Removal steps in this procedure may contain installation details.

Remove the wheel and tire. Refer to: Wheel and Tire - Vehicles With: Dual Rear Wheels . Refer to: Wheel and Tire - Vehicles With: Single Rear Wheels .
NOTE: Do not pry in the caliper sight hole to retract the pistons as this can damage the pistons and boots.

NOTE: Do not allow the brake caliper to hang from the brake hose or damage to the hose can occur.

NOTE: F250 and F350 shown.

Remove the bolts and position the brake caliper and anchor plate aside. Discard the bolts.

Courtesy of FORD MOTOR COMPANY
Remove the grease cap.

Courtesy of FORD MOTOR COMPANY
1. Remove and discard the cotter pin.
2. Remove the spindle nut retainer.
Courtesy of FORD MOTOR COMPANY

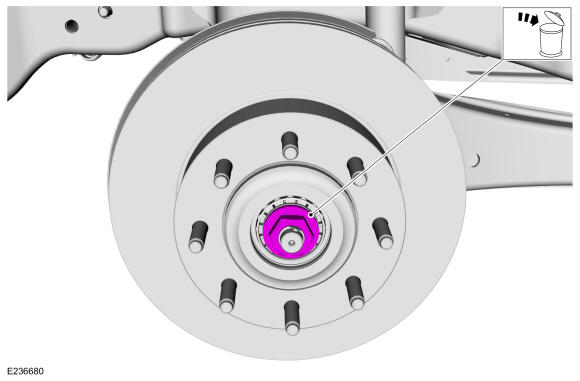

Remove and discard the wheel spindle nut and washer.

Courtesy of FORD MOTOR COMPANY
Remove the outer wheel bearing.

Courtesy of FORD MOTOR COMPANY
NOTE: Use extreme care not to damage the spindle when removing the bearing or the hub.

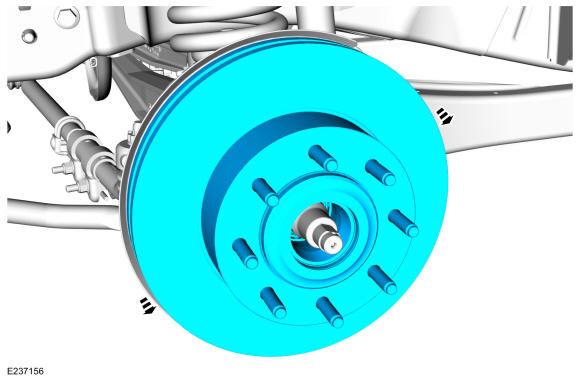

Remove the front wheel hub assembly.

Courtesy of FORD MOTOR COMPANY
NOTE: This step is only necessary when installing a new component.

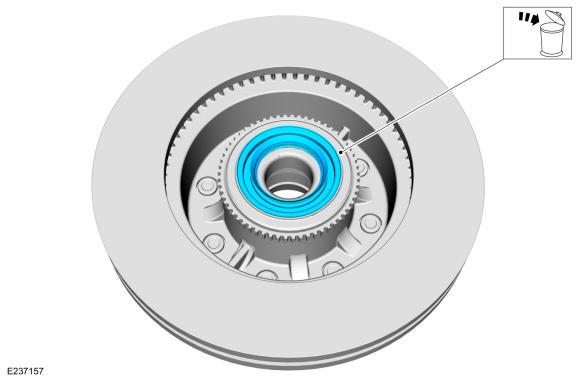

Remove and discard the inner wheel bearing seal.

Courtesy of FORD MOTOR COMPANY
NOTE: This step is only necessary when installing a new component.

Remove the inner wheel bearing.

Courtesy of FORD MOTOR COMPANY
NOTE: Do not spin the bearings dry with compressed air or damage to bearings may occur.

NOTE: Remove all traces of lubricant from the bearings. Inspect bearings and bearing cups for pitting, spalling or unusual wear. If either bearings or bearing cups are worn or damaged, both bearings and bearing cups should be installed new.

NOTE: It is recommended that bearings and bearing cups be installed in sets. If cups are worn or damaged, install the inner and outer bearing cups in the hub with an appropriate bearing cup driver tool. Check for correct seating of the new bearing cups by trying to insert a 0.38 mm (0.015 in) feeler gauge between the bottom face of the cup and wheel hub seat. It should not be possible to insert the feeler gauge.

NOTE: This step is only necessary when installing a new component.

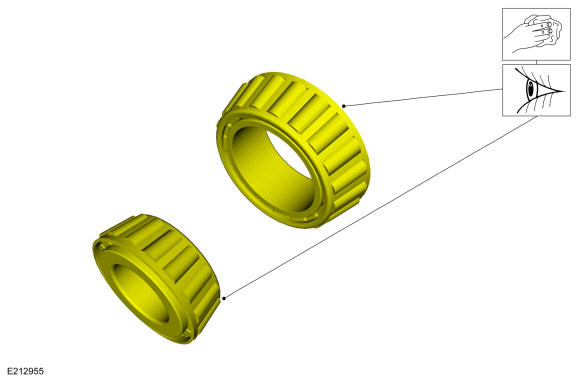

Clean and inspect the wheel bearings.

Courtesy of FORD MOTOR COMPANY

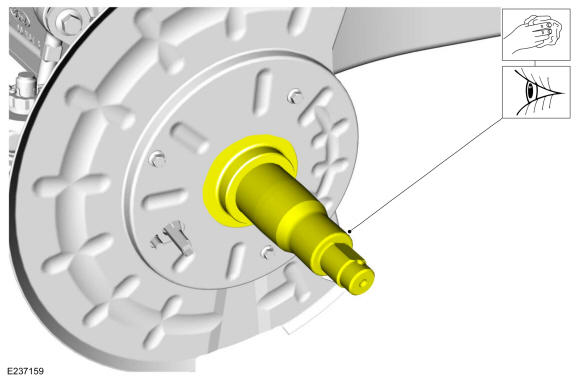

Clean and inspect the spindle.

Courtesy of FORD MOTOR COMPANY

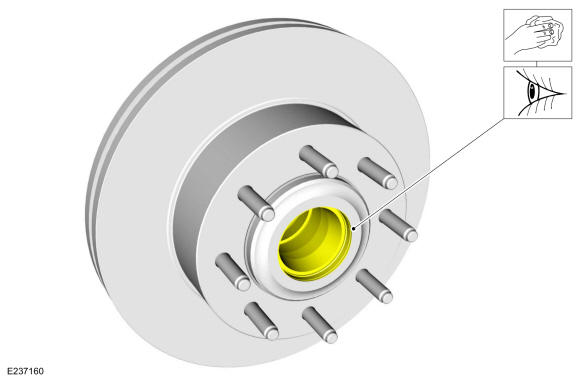

If necessary. Clean and inspect the hub.

Courtesy of FORD MOTOR COMPANY

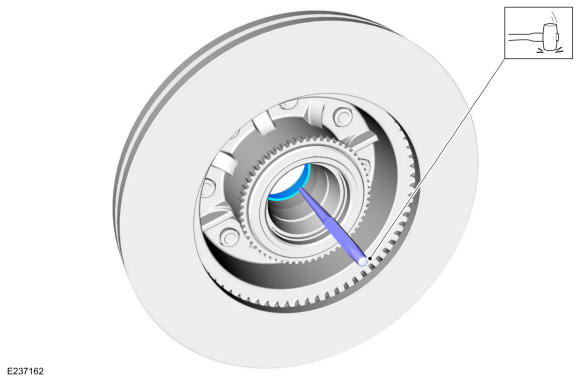

If necessary. Use a brass drift to remove the inner wheel bearing cup.

Courtesy of FORD MOTOR COMPANY

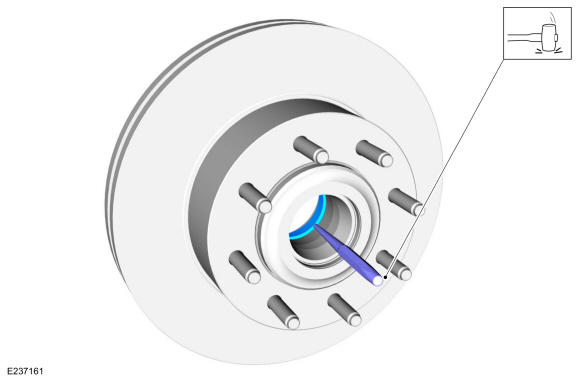

If necessary. Use a brass drift to remove the outer wheel bearing cup.

Courtesy of FORD MOTOR COMPANY
