Track Bar Bushing: Installation
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
-

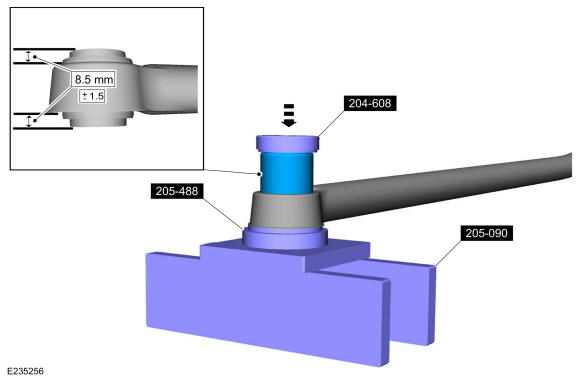

NOTE: Bushing should be centered in track bar with equal amounts of the bushing exposed on both sides of the track bar.
Install the new track bar bushing into the track bar. Use Special Service Tool: 204-608 Bushing Remover., 205-488 Installer, Drive Pinion Bearing., 205-090 (T75L-1165-B) Plate, Bearing/Oil Seal. Use the General Equipment: Hydraulic Press
- Install the track bar. Refer to: Track Bar . Refer to: Track Bar - Vehicles With: Integral Ball Joint .
