Radius Arm Bushing - F-450/F-550: Removal
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the radius arm. Refer to: Radius Arm - F-450/F-550 .

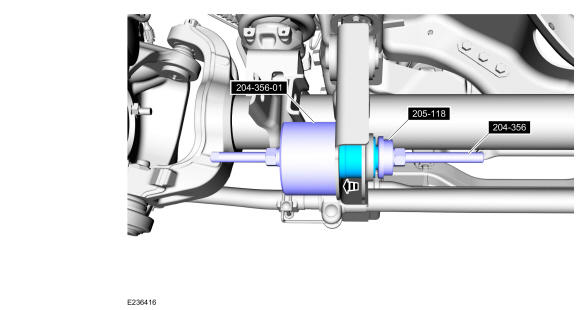

- Remove the radius arm bushing. Use Special Service Tool: 204-356 Remover/Installer, Radius Arm Axle Bushing., 205-118 (T77F-4222-A) Differential bearing cap installer.
