Front Wheel Bearing and Wheel Hub - F-250/F-350: Installation

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Remove any foreign material before installing the bearing cup.

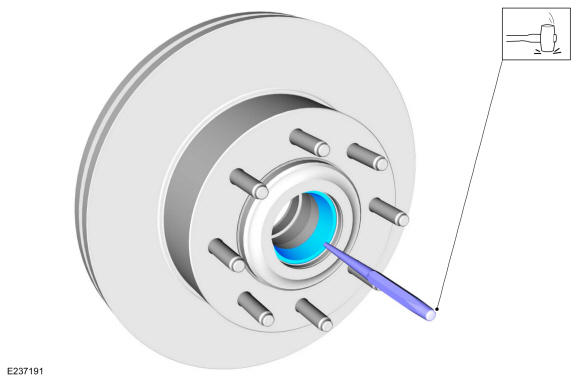

If necessary. Use a brass drift to install the outer wheel bearing cup.

Courtesy of FORD MOTOR COMPANY
NOTE: Remove any foreign material before installing the bearing cup.

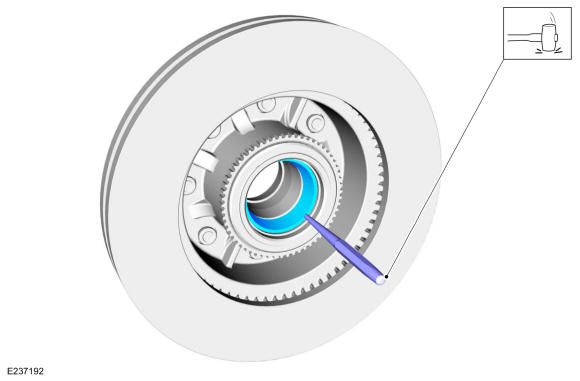

If necessary. Use a brass drift to install the inner wheel bearing cup.

Courtesy of FORD MOTOR COMPANY
Lubricate the hub.
Material: Motorcraft ® Premium Long-Life Grease / XG-1-E1 (ESA-M1C75-B)

Courtesy of FORD MOTOR COMPANY
Lubricate the bearings.
Material: Motorcraft ® Premium Long-Life Grease / XG-1-E1 (ESA-M1C75-B)

Courtesy of FORD MOTOR COMPANY

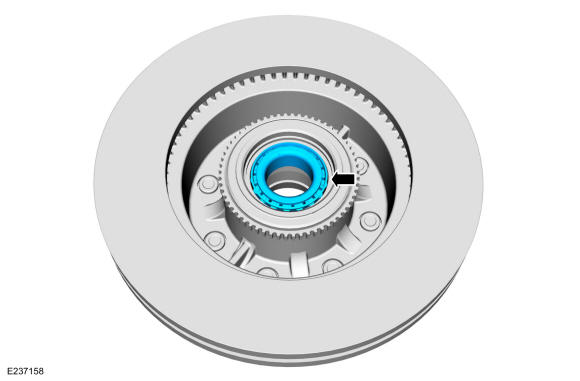

Install the inner wheel bearing.

Courtesy of FORD MOTOR COMPANY

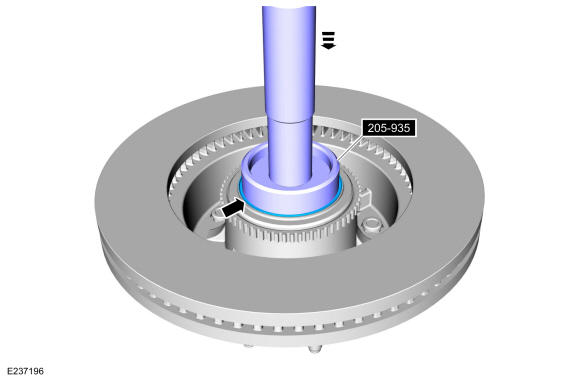

Install a new front wheel hub grease seal.

Courtesy of FORD MOTOR COMPANY
NOTE: Use extreme care not to damage the spindle when installing the hub.

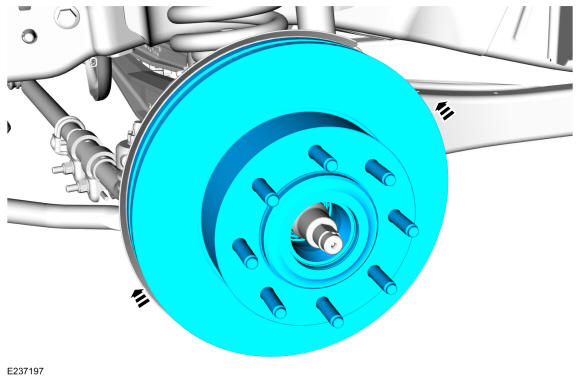

Install the front wheel hub assembly.

Courtesy of FORD MOTOR COMPANY

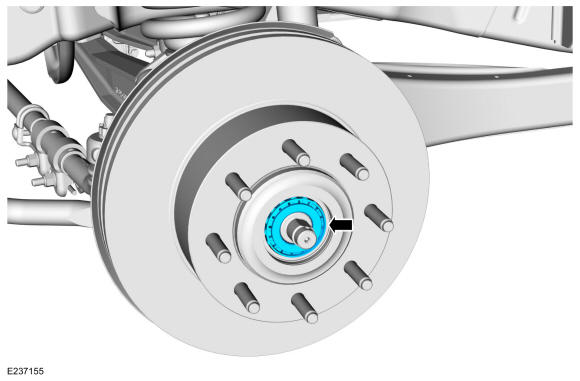

Install the outer wheel bearing.

Courtesy of FORD MOTOR COMPANY
NOTE: Only tighten the nut finger tight at this stage.

Install the new wheel spindle washer and nut.

Courtesy of FORD MOTOR COMPANY
Adjust the wheel bearing. Refer to: Wheel Bearing Adjustment - F-250/F-350 .
Install the brake caliper anchor plate. Refer to: Brake Caliper Anchor Plate .
