Front Spring - F-250/F-350: Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Suspension fasteners are critical parts that affect the performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.

NOTE: Removal steps in this procedure may contain installation details.

Remove the wheel and tire. Refer to: Wheel and Tire - Vehicles With: Single Rear Wheels . Refer to: Wheel and Tire - Vehicles With: Dual Rear Wheels .

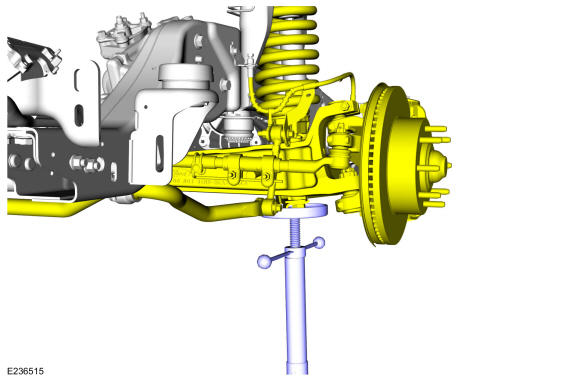

Support the front axle assembly. Use the General Equipment: Vehicle/Axle Stands

Courtesy of FORD MOTOR COMPANY

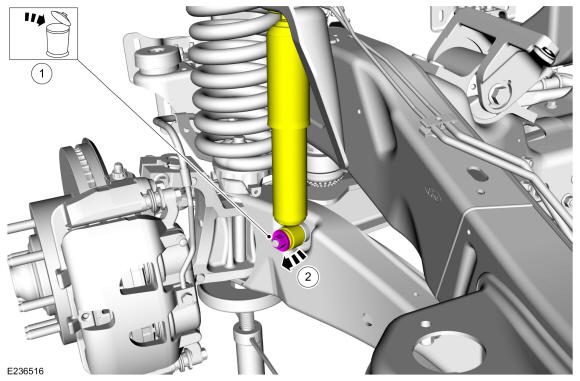

1. Remove the front shock absorber lower nut and washer.
  Torque: 52 lb.ft (70 Nm)
2. Detach the front shock from the lower mounting stud.
Courtesy of FORD MOTOR COMPANY

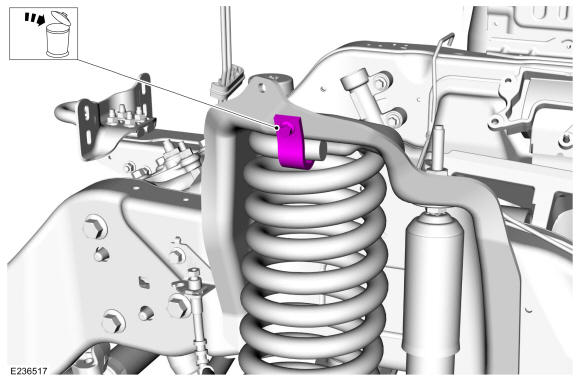

Remove and discard the upper spring bracket bolt and remove upper spring bracket.
Torque: 26 lb.ft (35 Nm)

Courtesy of FORD MOTOR COMPANY

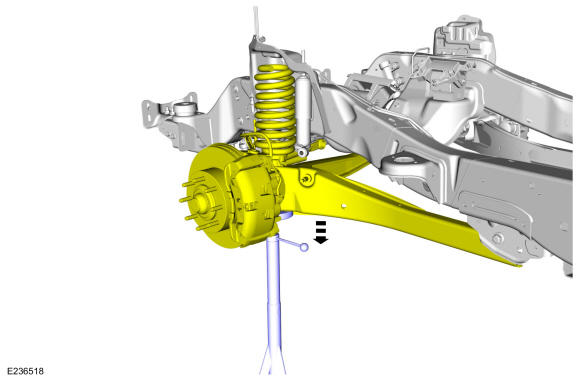

Lower the front axle assembly until the spring is free of the spring upper seat. Use the General Equipment: Vehicle/Axle Stands

Courtesy of FORD MOTOR COMPANY

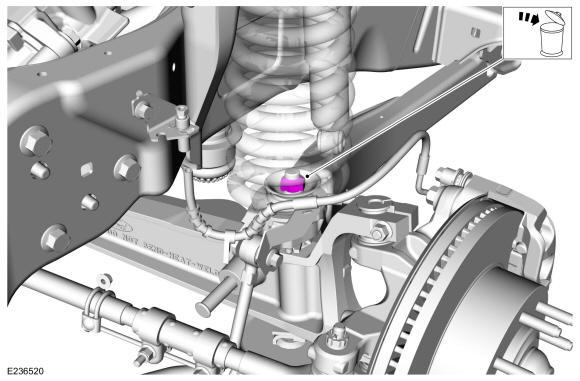

NOTE: The spring lower nut can be accessed using an extension through the top of the spring.

Remove and discard the spring lower nut.

Torque: 148 lb.ft (200 Nm)

Courtesy of FORD MOTOR COMPANY

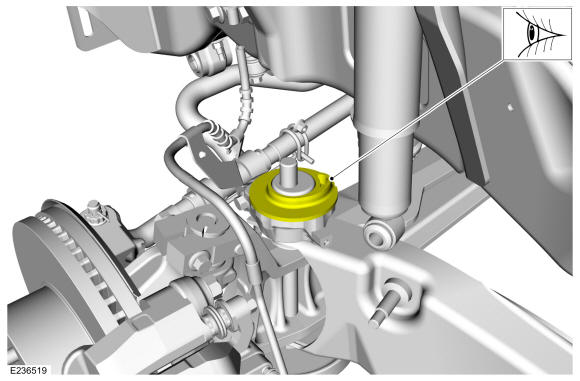

Inspect the spring lower insulator, install new as necessary.

Courtesy of FORD MOTOR COMPANY
