Ball Joint: Installation

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

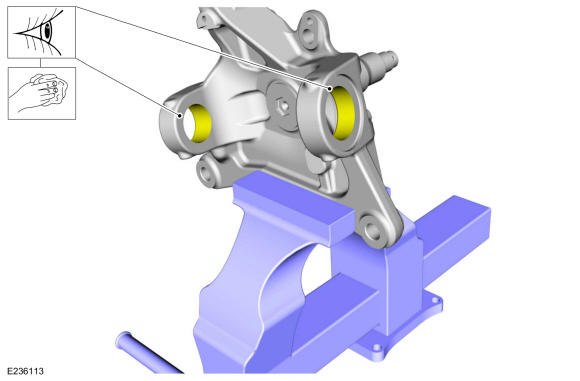

Clean and inspect the wheel spindle/wheel knuckle ball joint bores. Use the General Equipment: Vise

Courtesy of FORD MOTOR COMPANY
NOTE: To avoid damage to components, do not use heat to aid installation.

NOTE: The upper ball joint must be installed first.

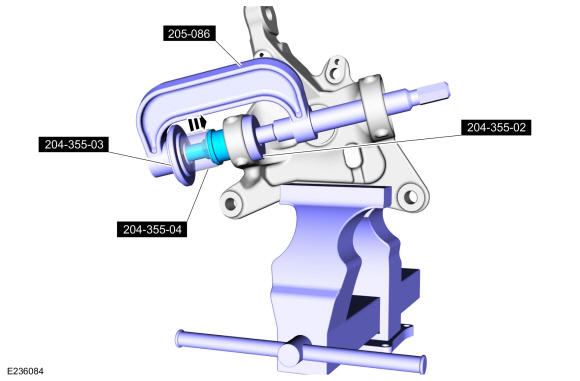

Install the upper ball joint. Use Special Service Tool: 205-086 (T74P-4635-C) Installer/Remover, C-Frame and Screw., 204-355 Remover/Installer, Ball Joint. Use the General Equipment: Vise

Courtesy of FORD MOTOR COMPANY

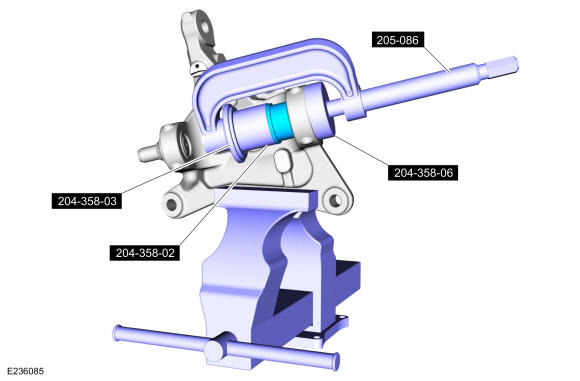

Install the lower ball joint. Use Special Service Tool: 205-086 (T74P-4635-C) Installer/Remover, C-Frame and Screw., 204-358 Remover/Installer, Ball Joint. Use the General Equipment: Vise

Courtesy of FORD MOTOR COMPANY

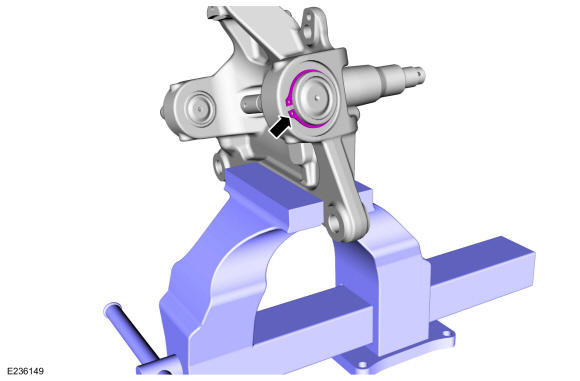

Install the new snap ring to the lower ball joint. Use the General Equipment: Vise Use the General Equipment: Snap Ring Pliers

Courtesy of FORD MOTOR COMPANY
Install the wheel spindle or wheel knuckle assembly. Refer to: Wheel Spindle - F-250/F-350 . Refer to: Wheel Knuckle - F-450/F-550 .
