Axle - F-450/F-550: Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Suspension fasteners are critical parts that affect the performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.

NOTE: Removal steps in this procedure may contain installation details.

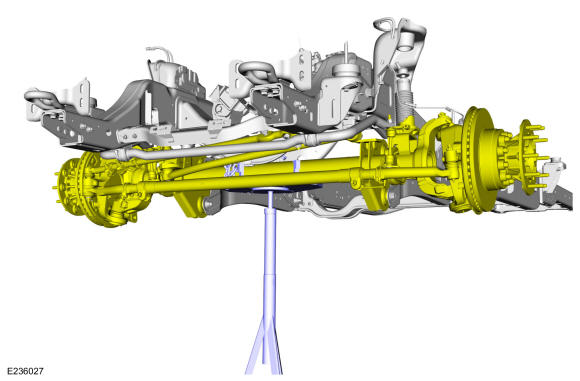

Support the front axle. Use the General Equipment: Transmission Jack

Courtesy of FORD MOTOR COMPANY
Remove the track bar. Refer to: Track Bar .
Remove the springs. Refer to: Spring - F-450/F-550 .
Remove the wheel knuckles. Refer to: Wheel Knuckle - F-450/F-550 .

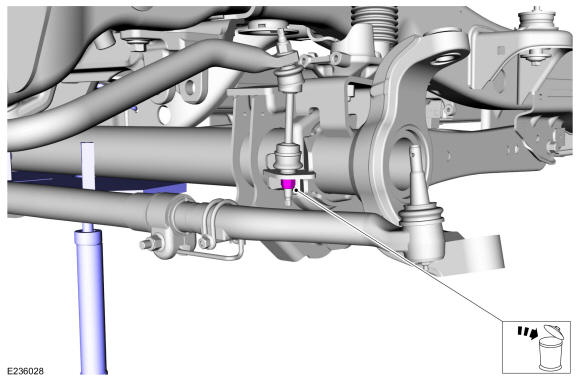

NOTE: Use the hex-holding feature to prevent the ball stud from turning while removing or installing the stabilizer link nut.

On both sides. Remove and discard the stabilizer bar link lower nuts.

Torque: 59 lb.ft (80 Nm)

Courtesy of FORD MOTOR COMPANY

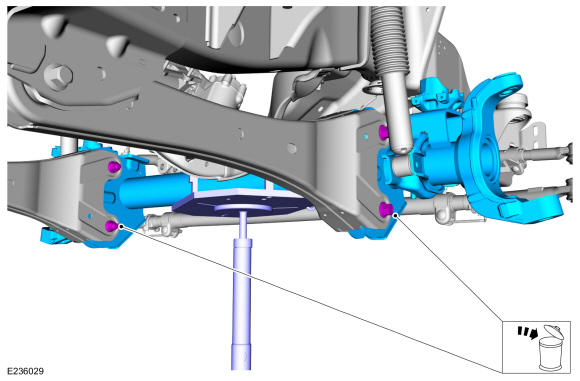

NOTE: Tighten the radius arm front nuts with the suspension at curb height or damage to the bushings may occur.

Remove and discard the radius arm front nuts and bolts. Remove the axle assembly.

Torque: 240 lb.ft (325 Nm)

Courtesy of FORD MOTOR COMPANY
