Axle - F-250/F-350: Installation

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

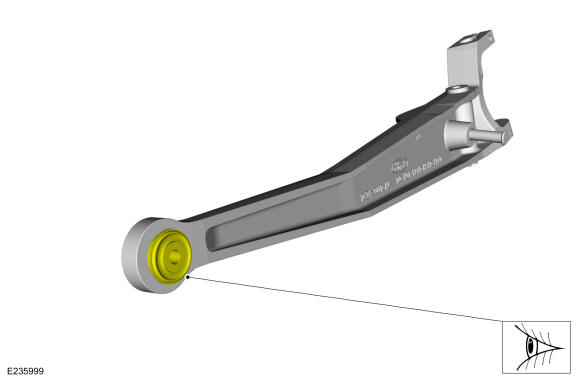

Inspect the pivot bushing for wear or damage. Install a new bushing as necessary.

Courtesy of FORD MOTOR COMPANY
NOTE: Tighten the axle pivot nut with the suspension at curb height or damage to the bushing may occur.

NOTE: Only tighten the nut and bolt finger tight at this stage.

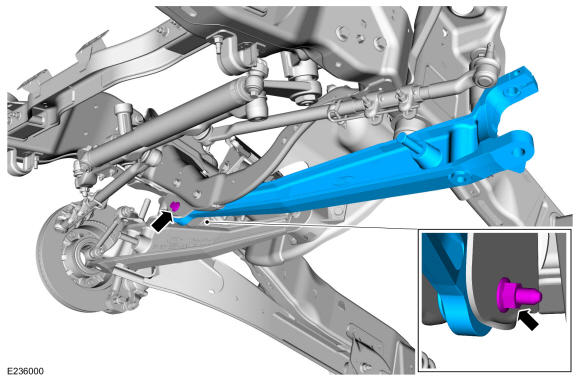

Position the front axle into the pivot bracket, install the new pivot bolt and nut.

Courtesy of FORD MOTOR COMPANY
Install the radius arm. Refer to: Radius Arm - F-250/F-350 .
Install the wheel spindle. Refer to: Wheel Spindle - F-250/F-350 .
NOTE: With the weight of the vehicle resting on the wheels and tires.

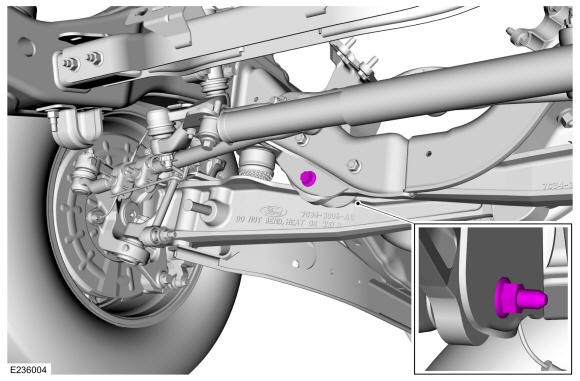

Tighten the new axle pivot nut and bolt.

Torque: 129 lb.ft (175 Nm)

Courtesy of FORD MOTOR COMPANY
Check and if necessary, align the front end. Refer to: Front Camber and Caster Adjustment - F-250/F-350, RWD .
