Brake Shift Interlock Actuator: Removal
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding
- Remove the selector lever mechanism. Refer to: Selector Lever Mechanism .

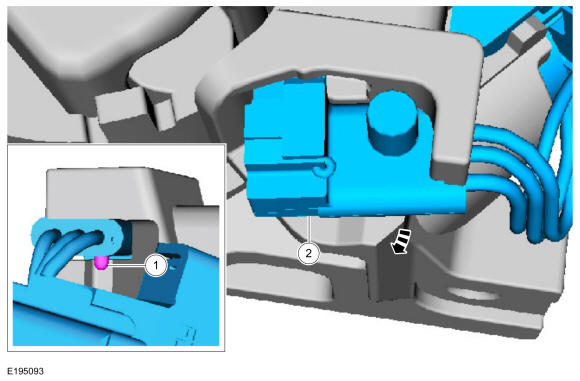

- Remove the brake shift interlock actuator screw.
- Gently pry the clip out and remove the brake shift interlock actuator from the selector lever mechanism.
- Remove the park position switch and the brake shift interlock actuator as an assembly.
- Press the park position switch spring loaded pin.
- While pressing in on the spring loaded pin, rotate the park position switch clockwise and remove it and the brake shift interlock actuator from the selector lever mechanism.
