External Controls - 6R100

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

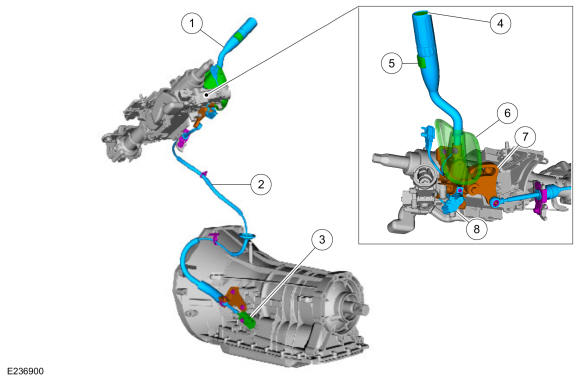

GFD409217Courtesy of FORD MOTOR COMPANY
Item Description
1 Selector lever
2 Selector lever cable
3 Selector lever cable adjuster
4 TCS
5 SelectShift® switch
6 Selector lever boot
7 Selector lever mechanism
8 Brake shift interlock actuator
