Ride Height Measurement

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

Check

Ride Height Measurement -- Front

NOTE: Make sure that the vehicle is positioned on a flat, level surface.

Jounce front and rear suspension vigorously to allow the vehicle to settle.
Before measuring ride height check:
- Tires are inflated to the correct pressure.
- Vehicle should have at least one-half tank of fuel.
- All fluids at proper levels.
- No cargo inside the cab or bed.
- Inspect for aftermarket equipment. Check for aftermarket changes to the steering, suspension, wheel and tire components (such as competition, heavy duty, etc.).
NOTE: F-250 and F-350, Rear Wheel Drive (RWD)

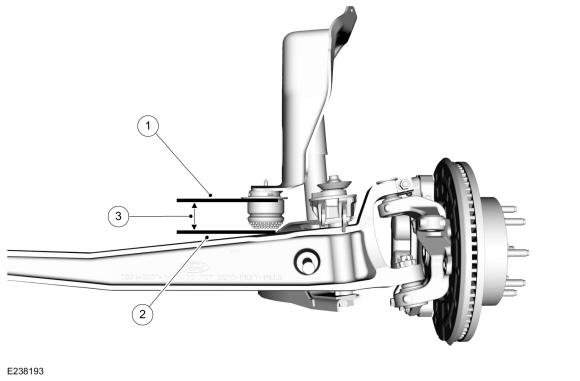

1. Bottom surface of the jounce bumper cup (measurement point 1)
2. Top of I-beam axle (measurement point 2)
3. Ride height = distance between measurement point 1 and measurement point 2
Courtesy of FORD MOTOR COMPANY
NOTE: F-250 and F-350, Four-Wheel Drive (4WD), F-450 and F-550

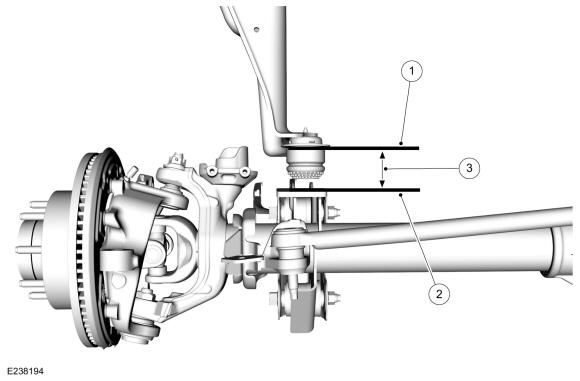

1. Bottom surface of the jounce bumper cup (measurement point 1)
2. Top surface of the jounce bumper pad on the axle (measurement point 2)
3. Ride height = distance between measurement point 1 and measurement point 2
Courtesy of FORD MOTOR COMPANY

Ride Height Measurement -- Rear
NOTE: Make sure that the vehicle is positioned on a flat, level surface.

Jounce front and rear suspension vigorously to allow the vehicle to settle.
Before measuring ride height check:
- Tires are inflated to the correct pressure.
- Vehicle should have at least one-half tank of fuel.
- All fluids at proper levels.
- No cargo inside the cab or bed.
- Inspect for aftermarket equipment. Check for aftermarket changes to the steering, suspension, wheel and tire components (such as competition, heavy duty, etc.).
NOTE: F-250 and F-350, Rear Wheel Drive (RWD) and F-450 and F-550 without Low Deflection Package

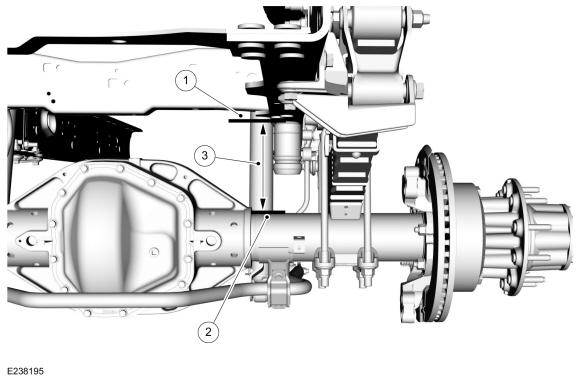

1. Bottom of the jounce bumper at the frame (measurement point 1)
2. Top of axle tube (measurement point 2)
3. Ride height = distance between measurement point 1 and measurement point 2
Courtesy of FORD MOTOR COMPANY
NOTE: F-250 and F-350, Four-Wheel Drive (4WD) and F-450 and F-550 with Low Deflection Package

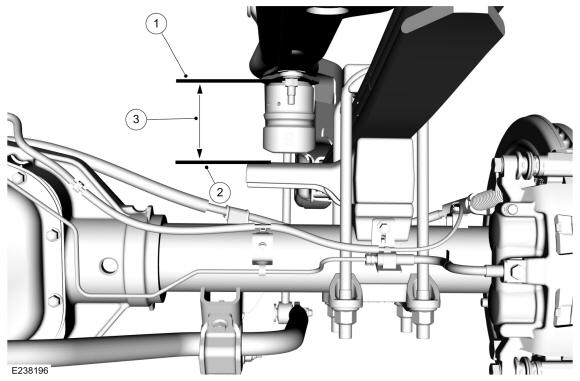

1. Bottom of the jounce bumper at the frame (measurement point 1)
2. Top of spring spacer (measurement point 2)
3. Ride height = distance between measurement point 1 and measurement point 2

Courtesy of FORD MOTOR COMPANY
