Trough Assembly: Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

NOTE: Removal steps in this procedure may contain installation details.

Remove the roof opening panel glass. Refer to: Roof Opening Panel Glass .

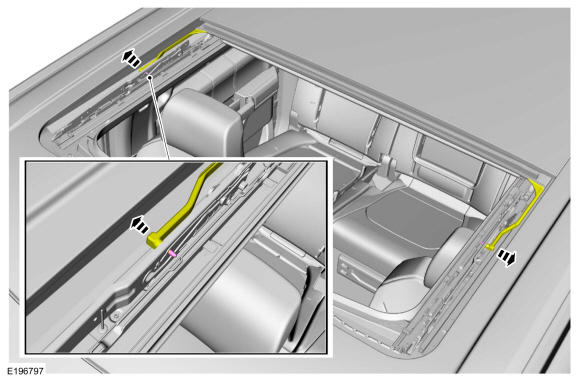

Detach the trough assembly arms on both sides.

Courtesy of FORD MOTOR COMPANY

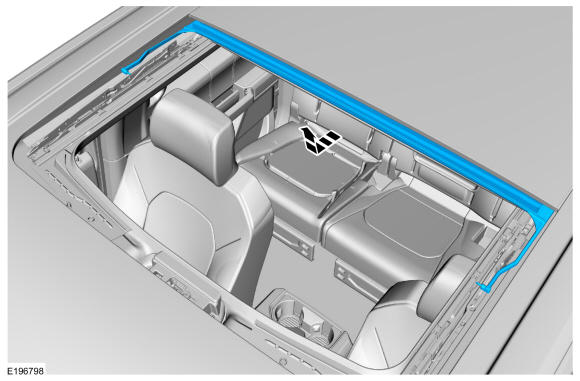

Pull the trough assembly towards the front of the vehicle and remove the trough assembly.

Courtesy of FORD MOTOR COMPANY
