Roof Opening Panel Glass Bracket: Installation

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

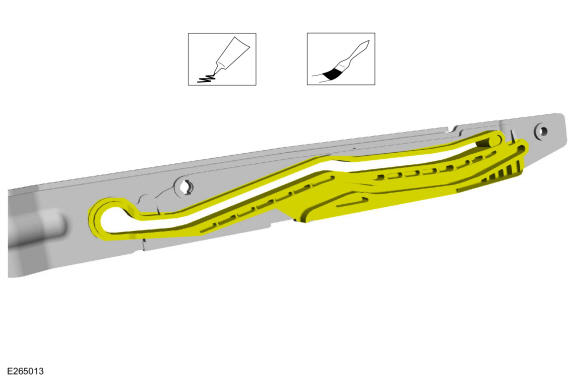

Apply the specified grease to the glass bracket cam slots. Grease KLUBERSYNTH P 84-52 G (GREY)

Courtesy of FORD MOTOR COMPANY
Apply the specified grease to the glass bracket pins. Grease KLUBERSYNTH P 84-52 G (GREY)

Courtesy of FORD MOTOR COMPANY

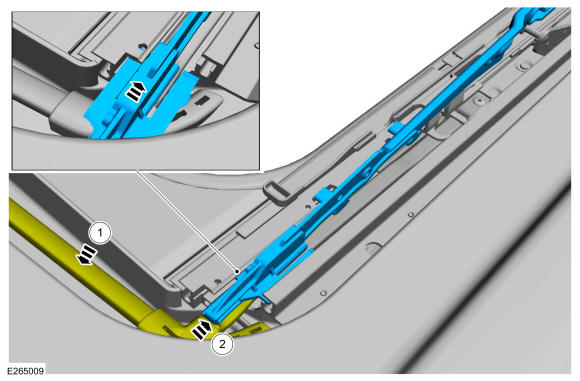

1. Push down on the deflector.
2. Install the glass bracket, inserting the inboard bracket shoe into the inside track first.
Courtesy of FORD MOTOR COMPANY

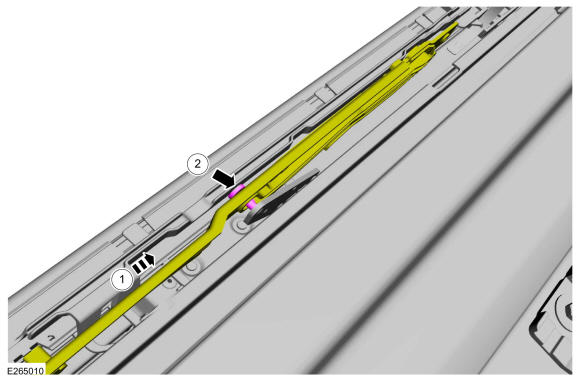

1. Slide the glass bracket rearward aligning the hole in the bracket with the trolly pin.
2. Attach the glass arm to the trolly pin.
Courtesy of FORD MOTOR COMPANY

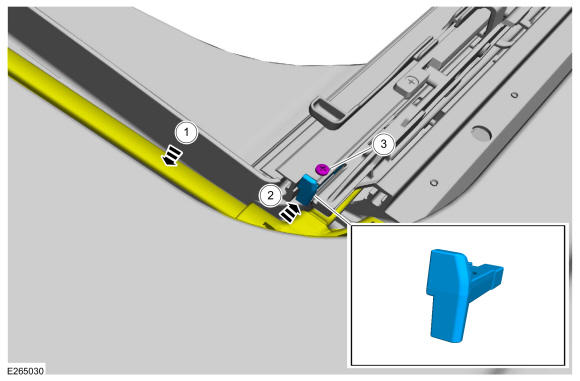

1. Press down on the deflector.
2. Install the stop.
3. Install the screw.
  Torque: 6 lb.in (0.7 Nm)
Courtesy of FORD MOTOR COMPANY

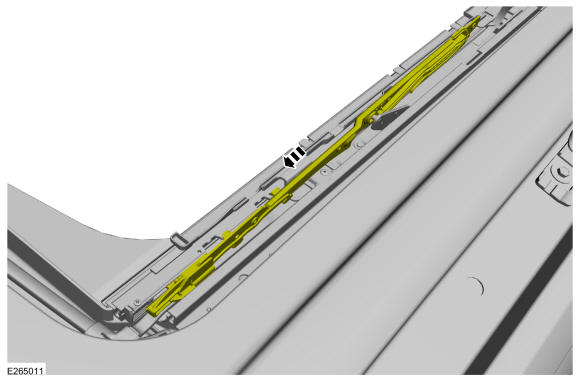

Slide the glass bracket and forward until it contacts the stop.

Courtesy of FORD MOTOR COMPANY

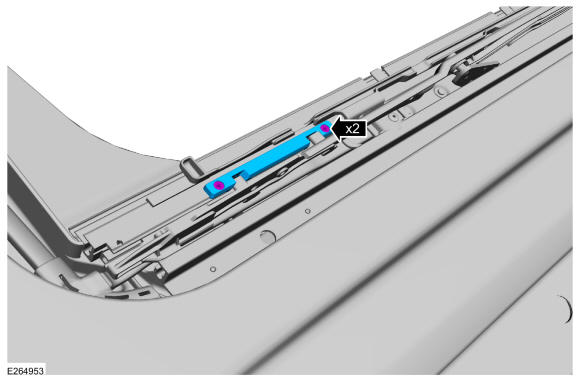

Install the set plate and the screws.
Torque: 6 lb.in (0.7 Nm)

Courtesy of FORD MOTOR COMPANY

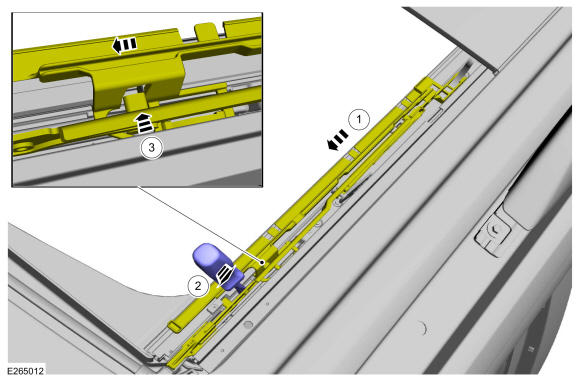

1. Slide the trolly slide forward.
2. Pry outward on the glass bracket and align the tab.
3. Release pressure on the arm and engage the tab with the trough slider.
Courtesy of FORD MOTOR COMPANY
Install the trough assembly. Refer to: Trough Assembly .
