Roof Opening Panel Frame: Installation
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
- To install, reverse the removal procedure.
-
NOTE: It is possible for the cable mechanisms to move from the glass closed position during shipping. If the cable mechanisms are not in the glass closed position when the roof opening panel frame is installed, the roof opening panel will not initialize.

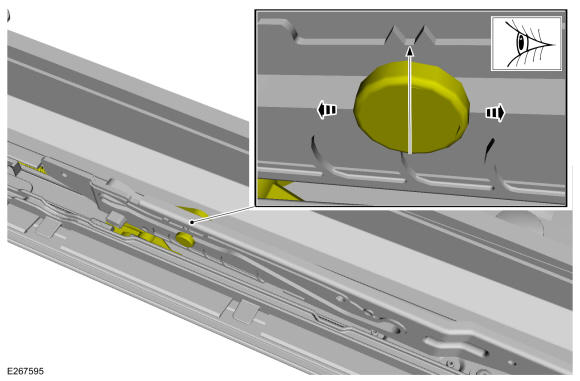

On both sides, make sure the trolley pins are aligned with the V-shaped alignment markings on the glass brackets to assure the mechanisms are in the glass closed position. Move the cable mechanism by hand or by pushing the trolley pin with a flat bladed screwdriver as necessary. Use the General Equipment: Flat-Bladed Screwdriver
-
NOTE: Note the position of the motors when transferring the motors to the new frame. Make sure the motors are installed to the new frame in the same position as removed from the old frame.NOTE: Install the fixed glass to the frame before installing the new frame.
Transfer parts as necessary.
- Once all components are installed, initialize the roof opening panel. Refer to: Power Roof Opening Panel Initialization .
