Roof Opening Panel Fixed Glass: Removal
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the roof opening panel frame. Refer to: Roof Opening Panel Frame .
-
NOTE: Position the roof opening panel frame upside down on a suitable workbench.

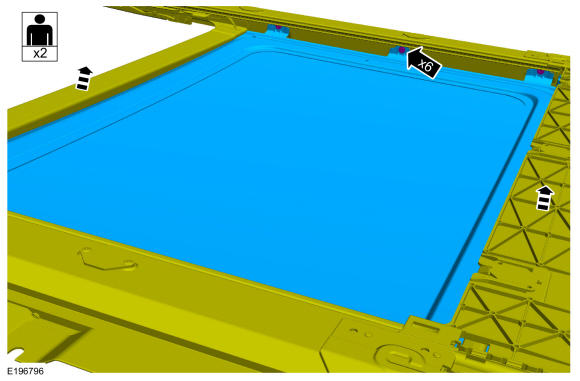

Remove the roof opening panel fixed glass bolts and with the aid of an assistant, separate the frame from the glass.
Torque: 35 lb.in (4 Nm)
