Air Deflector: Removal
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.

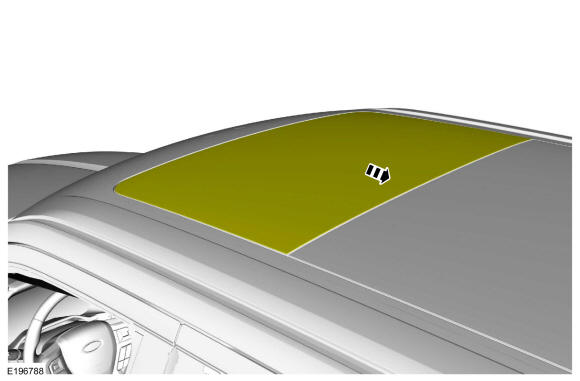

- Fully open the roof opening panel glass.

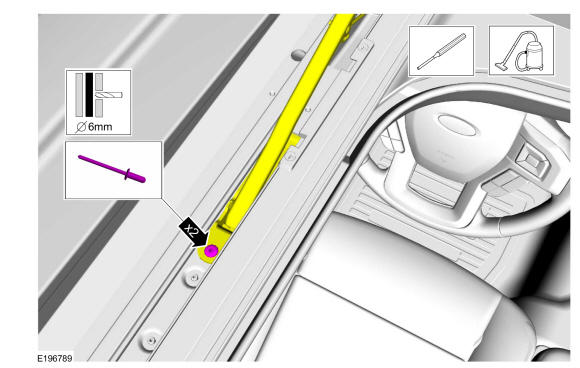

- Remove the air deflector arm rivets on both sides. Use the General Equipment: Electric Drill Use the General Equipment: 6 mm Drill Bit Use the General Equipment: Punch Use the General Equipment: Vacuum Cleaner
- Push downward on the air deflector material and detach the plastic edge of the fabric material from the frame tabs.

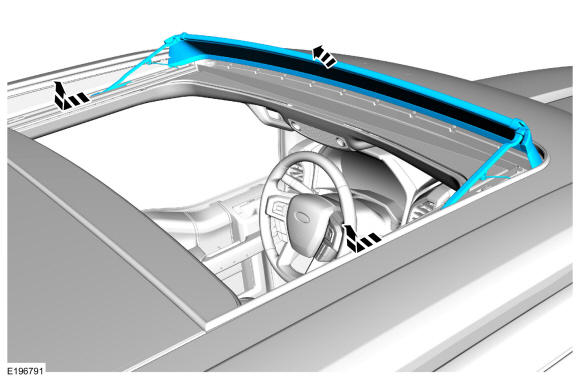

- Slide the air deflector arms rearward in the frame rails, roll the arms out of the rails and remove the air deflector.
