Trough Assembly: Removal
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the roof opening panel glass. Refer to: Roof Opening Panel Glass .
-

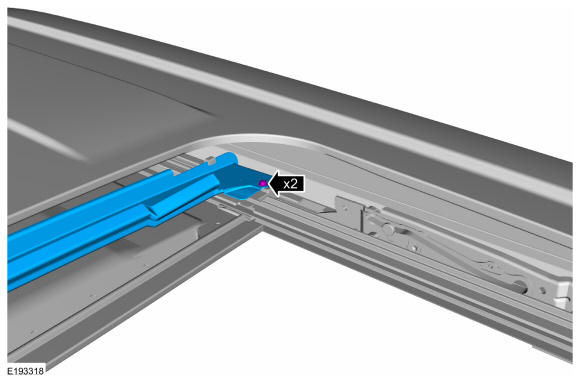

NOTE: LH side shown, RH side similar.
On both sides, remove the retainers.
Torque: 9 lb.in (1 Nm)
-

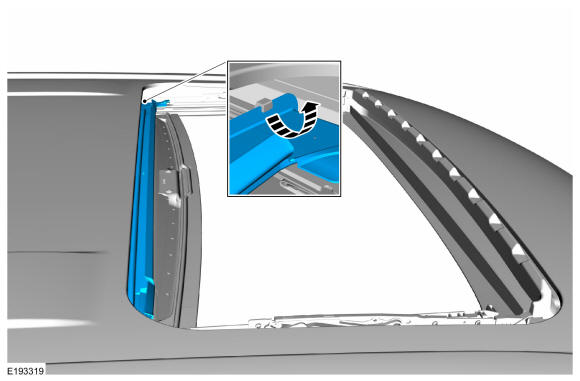

NOTE: Inset is LH side shown, RH side similar.
On both sides, roll the trough assembly out of the guide clips to remove.
