Roof Opening Panel Weatherstrip: Installation
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
- Place a new weatherstrip into position on the glass assembly, with the splice (seam) on the passenger side.

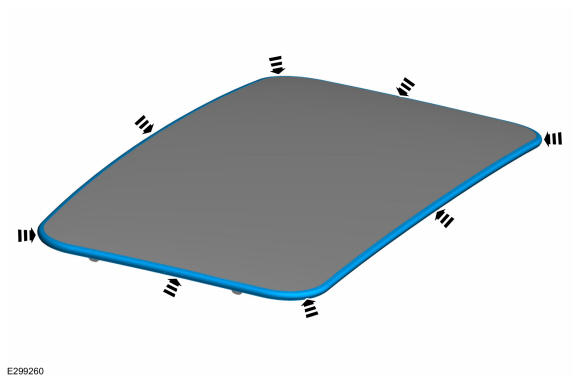

- Starting with the corners, push the weatherstrip into position. Continue pushing the weatherstrip into position around the glass assembly until complete.. Use the General Equipment: Rubber Mallet
- Install the roof opening panel glass. Refer to: Roof Opening Panel Glass .
