Roof Opening Panel Shield: Installation

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. To install, reverse the removal procedure.
  2. NOTE: Use the aid of an assistant to install the roof opening panel shield. Insert the RH rear guide foot into the guide track first and then rotate the shield clockwise working from side-to-side until all guide feet and tabs are fully inserted into the guide foot tracks. Some flexing of the shield and tabs will be necessary.

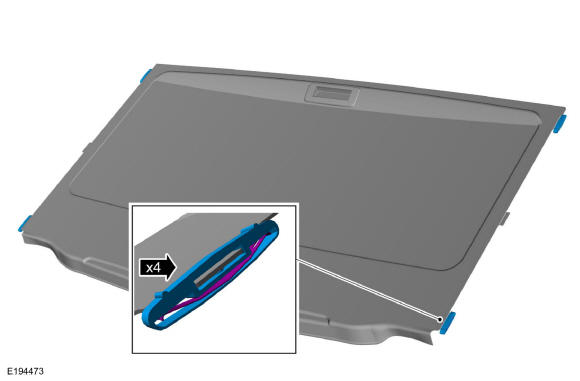

    Guide foot installation.

GFD411276Courtesy of FORD MOTOR COMPANY
