Roof Opening Panel Blind: Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place the roof opening panel shield to the fully OPEN position.
    GFD411261Courtesy of FORD MOTOR COMPANY

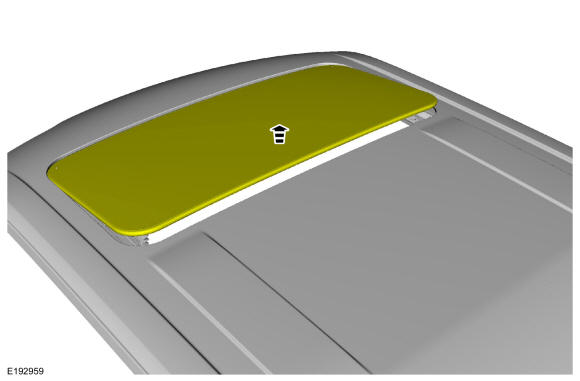

  2. Place the roof opening panel glass to the VENT position.
    GFD411262Courtesy of FORD MOTOR COMPANY

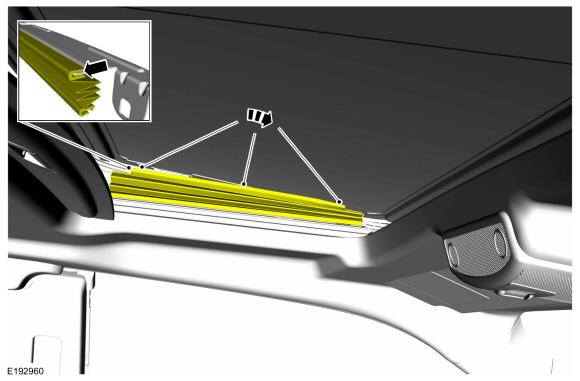

  3. NOTE: LH side shown, RH side similar.

    On both sides, detach the top portion of the roof opening panel blind from the roof opening panel glass frame.

    GFD411263Courtesy of FORD MOTOR COMPANY

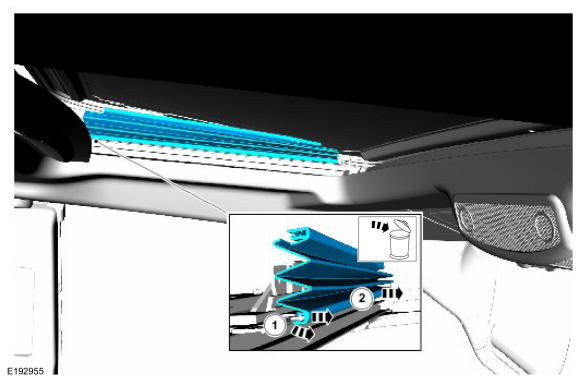

  4. NOTE: LH side shown, RH side similar.

    On both sides, remove and discard the roof opening panel blinds.

    1. Detach the bottom of the roof opening panel blind from the drip link.
    2. Pull forward to remove the roof opening panel blind. Discard the blind.

GFD411264Courtesy of FORD MOTOR COMPANY
