Cooling Fan Drive Assembly: Removal
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding
NOTE:
Vehicle with dual generators shown, single generator similar.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the cooling fan. Refer to: Cooling Fan .

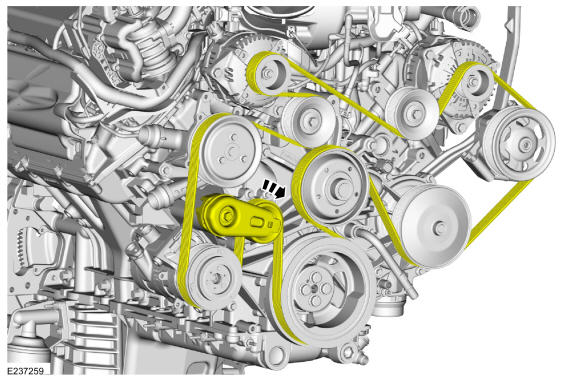

- Rotate the accessory drive belt tensioner clockwise and position aside the accessory drive belt.

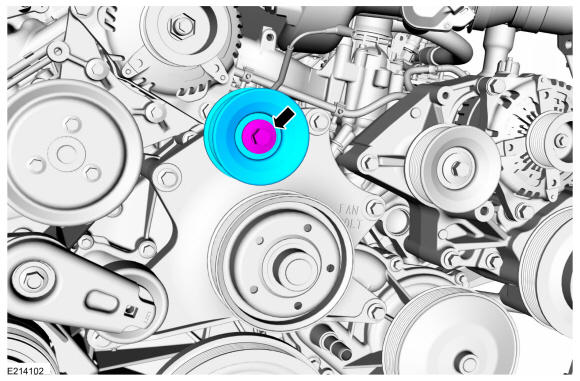

- Remove the bolt and the accessory drive belt idler pulley.
Torque: 35 lb.ft (47.5 Nm)

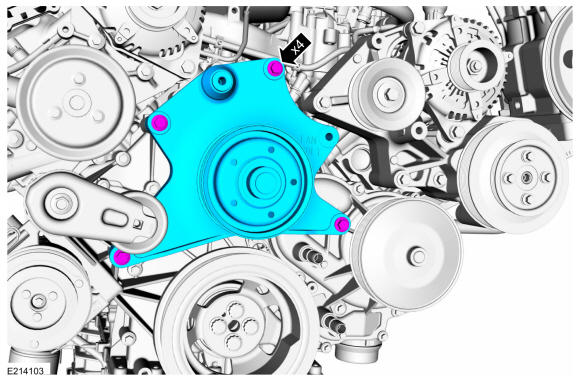

- Remove the bolts and the cooling fan drive assembly.
