Cooling Fan Drive Assembly: Installation

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

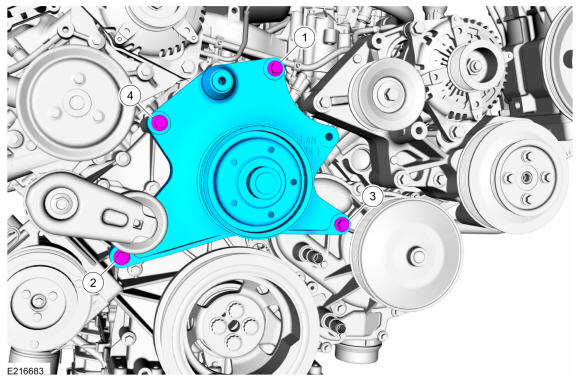

  1. Install the cooling fan drive assembly and tighten the bolts in this sequence.

    Torque: 18 lb.ft (25 Nm)

    GFD407890Courtesy of FORD MOTOR COMPANY
  2. NOTE: For additional information, refer to Accessory Drive in the Description and Operation portion of this information for correct drive belt routing.

    To install, reverse the removal procedure. Refer to: Accessory Drive - Component Location .
