Accessory Drive - Component Location
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

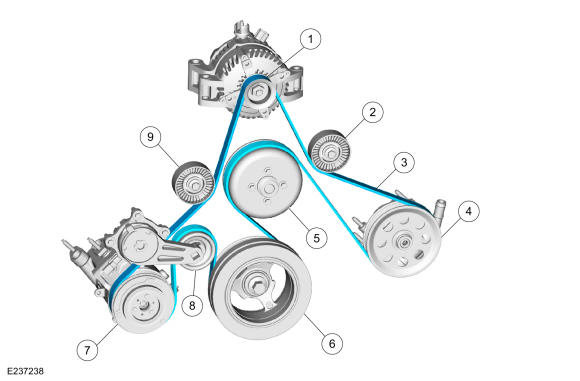

Courtesy of FORD MOTOR COMPANY
| Item |
Description |
| 1 |
Generator pulley |
| 2 |
Accessory drive belt idler pulley |
| 3 |
Accessory drive belt |
| 4 |
Power steering pump pulley |
| 5 |
Coolant pump pulley |
| 6 |
Crankshaft belt pulley |
| 7 |
A/C clutch pulley |
| 8 |
Drive belt tensioner pulley |
| 9 |
Accessory drive belt idler pulley |
