Turbocharger Inlet Pipe RH: Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Exhaust nuts are of a torque prevailing design. Use only new nuts with the same part number as the original. Torque values must be used as specified during reassembly to make sure of correct retention of exhaust components.

NOTE: Clean all exhaust connections before reassembly.

Remove the upper intake manifold. Refer to: Upper Intake Manifold .
NOTE: Note the position of the RH turbocharger inlet pipe clamp for installation.

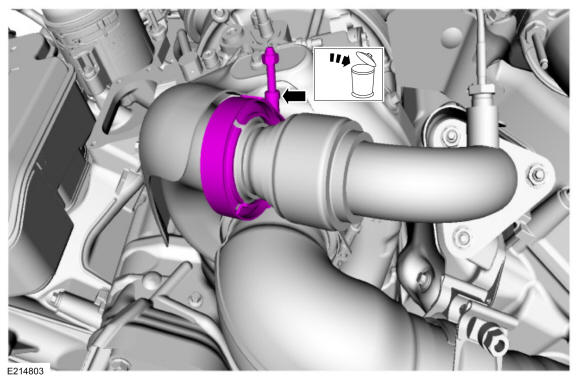

Remove and discard the RH turbocharger inlet pipe clamp.

Courtesy of FORD MOTOR COMPANY
1. Remove the EGT sensor flare nut from the RH turbocharger inlet pipe.
2. Remove the EP sensor flare nut from the RH turbocharger inlet pipe.
3. Remove the nut.
  Torque: 89 lb.in (10 Nm)
Courtesy of FORD MOTOR COMPANY
NOTE: Do not bend or twist the turbocharger inlet pipes or damage to the bellows on the turbocharger inlet pipes may occur.

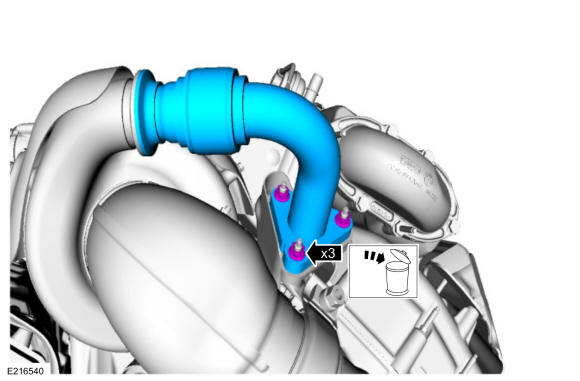

Remove and discard the RH turbocharger inlet pipe nuts and remove the RH turbocharger inlet pipe.

Courtesy of FORD MOTOR COMPANY

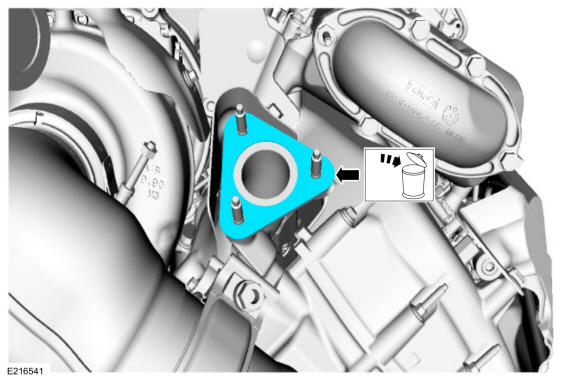

Remove and discard the RH turbocharger inlet pipe gasket.
