Exhaust Y-Pipe: Installation

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty and 2019 Ford F-450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Do not tighten the fasteners until all components are assembled.

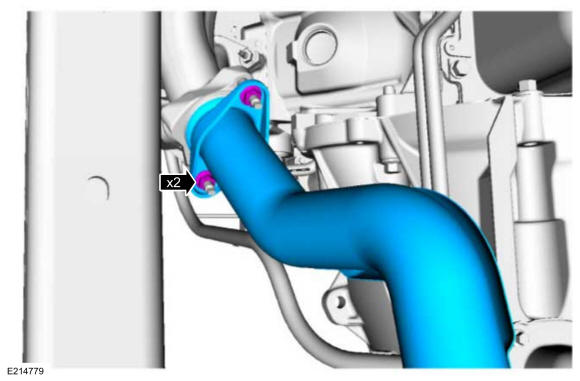

Install the exhaust Y-pipe in the vehicle and loosely install the new RH exhaust Y-pipe-toexhaust manifold nuts.

Courtesy of FORD MOTOR COMPANY
NOTE: Do not tighten the fasteners until all components are assembled.

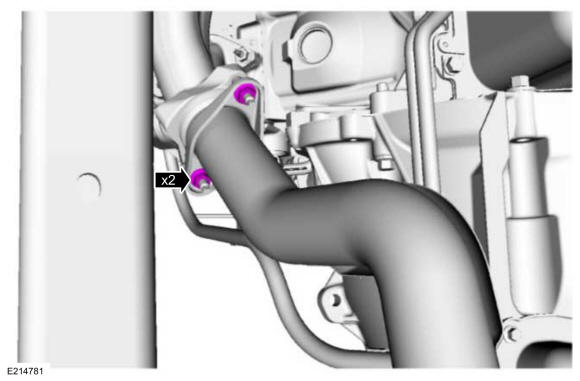

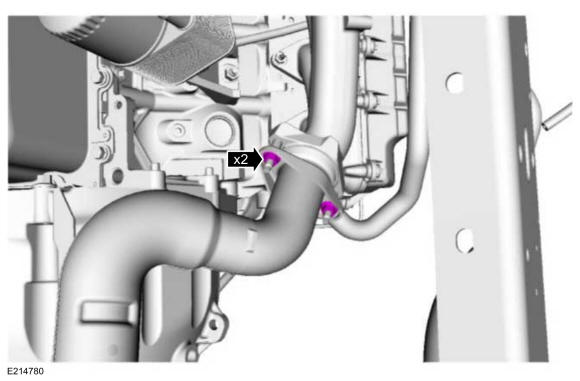

Loosely install the new LH exhaust Y-pipe-to-exhaust manifold nuts.

Courtesy of FORD MOTOR COMPANY
NOTE: Do not tighten the fasteners until all components are assembled.

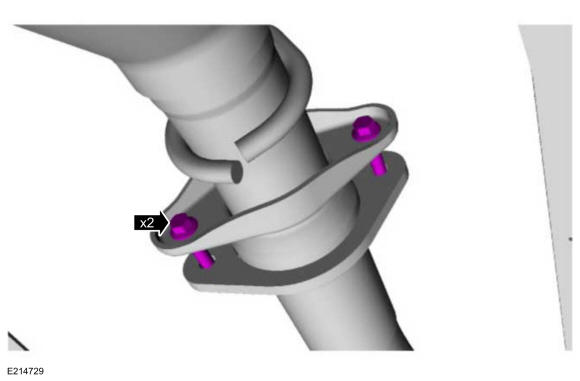

Loosely install the new exhaust Y-pipe-to-catalytic converter bolts.

Courtesy of FORD MOTOR COMPANY
1. Tighten the LH lower exhaust Y-pipe nut.
  Torque: 177 lb.in (20 Nm)
2. Tighten the LH upper exhaust Y-pipe nut.
  Torque: 30 lb.ft (40 Nm)
3. Tighten the LH lower exhaust Y-pipe nut.
  Torque: 30 lb.ft (40 Nm)
Courtesy of FORD MOTOR COMPANY
1. Tighten the RH lower exhaust Y-pipe nut.
  Torque: 177 lb.in (20 Nm)
2. Tighten the RH upper exhaust Y-pipe nut.
  Torque: 30 lb.ft (40 Nm)
3. Tighten the RH lower exhaust Y-pipe nut.
  Torque: 30 lb.ft (40 Nm)
Courtesy of FORD MOTOR COMPANY
Evenly tighten the exhaust Y-pipe-to-catalytic converter bolts.
Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

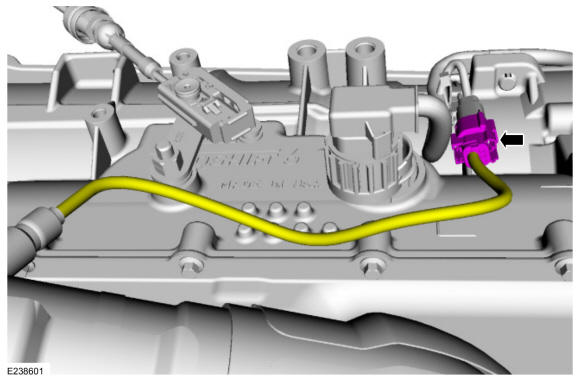

Attach the wire to the retainer and connect the RH side HO2S electrical connector.

Courtesy of FORD MOTOR COMPANY

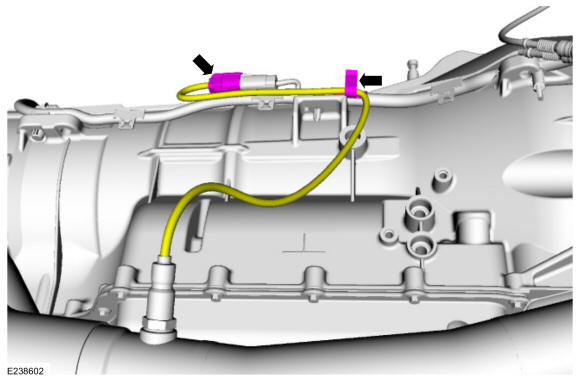

Connect the LH side HO2S electrical connector.

Courtesy of FORD MOTOR COMPANY
Check the exhaust system for leaks.
