Exhaust Intermediate Pipe: Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty and 2019 Ford F-450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

NOTE: Exhaust intermediate pipes will vary in configuration with different wheelbases. Typical application shown.

NOTE: Clean all exhaust connections before reassembly.

NOTE: Removal steps in this procedure may contain installation details.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Remove the catalytic converter. Refer to: Catalytic Converter .

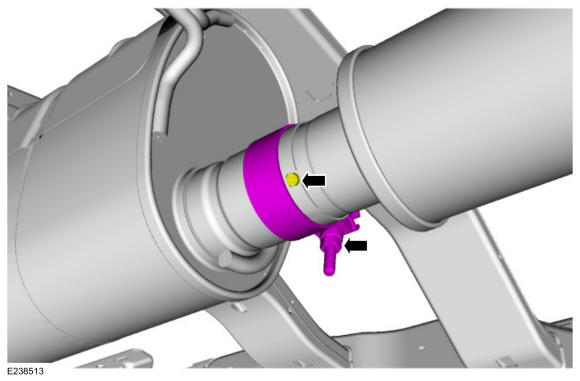

NOTE: During assembly, make sure the tab is fully seated in the notch on the pipe.

Loosen the exhaust intermediate pipe-to-rear muffler pipe clamp.

Torque: 41 lb.ft (55 Nm)

Courtesy of FORD MOTOR COMPANY

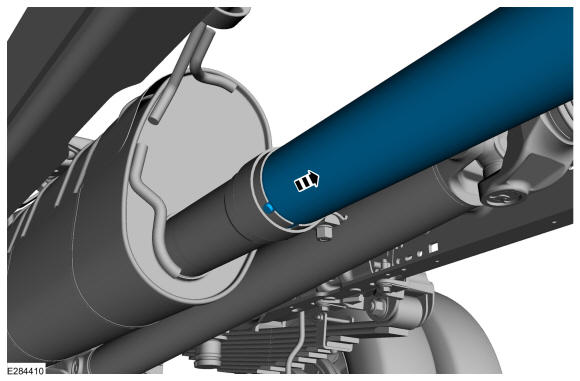

Remove the exhaust intermediate pipe.

Courtesy of FORD MOTOR COMPANY
