Catalytic Converter: Removal
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty and 2019 Ford F-450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding
NOTE:
Clean all exhaust connections before reassembly.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
-
NOTE: Typical application shown.
Disconnect the catalyst monitor sensor electrical connector.

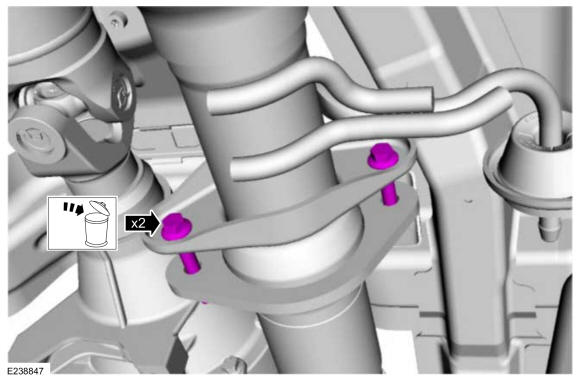

- Remove and discard the exhaust Y-pipe-to-catalytic converter bolts.
-
NOTE: During assembly, make sure the tab is fully seated in the notch on the pipe.
Loosen the catalytic converter-to-muffler clamp or, if equipped, the exhaust intermediate pipe clamp.
- Remove the exhaust hanger bracket nuts and the catalytic converter.
