Glow Plugs: Removal
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Right side
- Remove the Air Cleaner. Refer to: Air Cleaner .
- Remove the right fender splash shield. Refer to: Fender Splash Shield .
-
NOTE: It may be necessary to unthread the engine sound shield retainers from the engine.

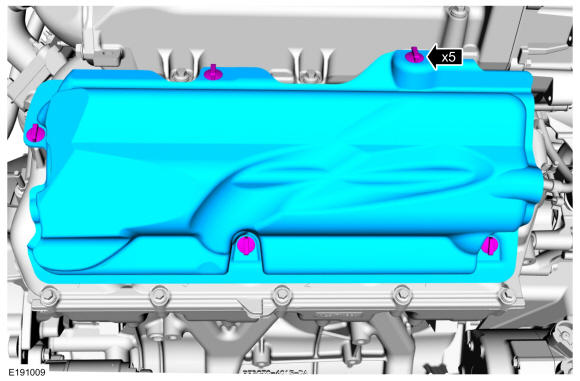

Remove the right engine sound shield retainers and then remove the right engine sound shield.

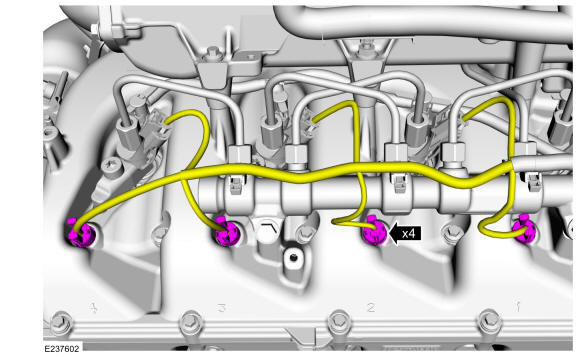

- Using the tabs on the top of glow plug connector, disconnect the glow plug connector from the glow plugs.
Left side
- Remove the left fender splash shield. Refer to: Fender Splash Shield .
-
NOTE: It may be necessary to unthread the engine sound shield retainers from the engine.

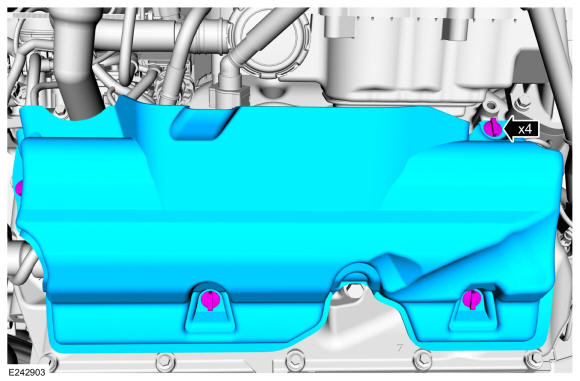

Remove the left engine sound shield retainers and then remove the left engine sound shield.

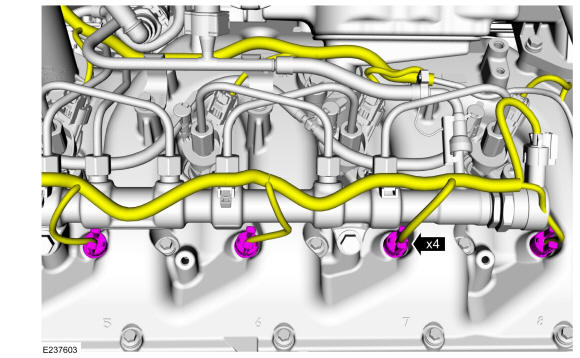

- Using the tabs on the top of glow plug connector, disconnect the glow plug connector from the glow plugs.
Both sides
-
NOTE: The use of an 0.3150in (8mm) deep socket with no internal shoulder is necessary for removal and installation of the glow plug.

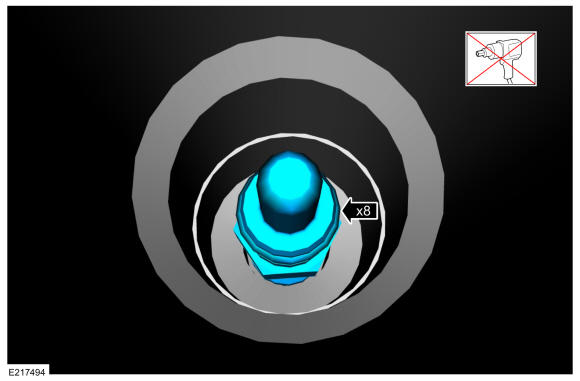

Remove the glow plugs.
