Glow Plugs: Installation

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

Both sides

NOTE: The use of an 0.3150in (8mm) deep socket with no internal shoulder is necessary for removal and installation of the glow plug.

Install and tighten the glow plugs in the following 2 stages.

Torque

Stage 1: 35 lb.in (4 Nm)

Stage 2: 50°

Courtesy of FORD MOTOR COMPANY

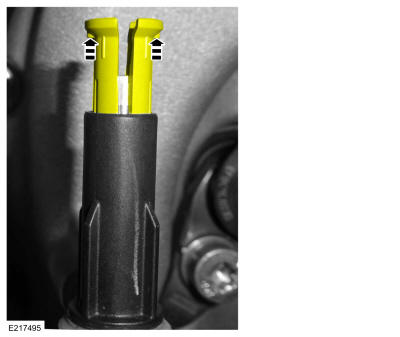

Pull the glow plug electrical connector out of the outer sleeve.

Courtesy of FORD MOTOR COMPANY

Left side
Connect the glow plug electrical connector to the glow plug and then push the connector down to lock the connector on the glow plug.

Courtesy of FORD MOTOR COMPANY
Install the left engine sound shield and then install the left engine sound shield retainers.

Courtesy of FORD MOTOR COMPANY
Install the left fender splash shield. Refer to: Fender Splash Shield .
Right side
Connect the glow plug electrical connector to the glow plug and then push the connector down to lock the connector on the glow plug.

Courtesy of FORD MOTOR COMPANY
Install the right engine sound shield and then install the right engine sound shield retainers.

Courtesy of FORD MOTOR COMPANY
Install the right fender splash shield. Refer to: Fender Splash Shield .
Install the Air Cleaner. Refer to: Air Cleaner .
