Rear Muffler: Removal

WARNING: This page is about a different car, the 2019 Ford F-350 Super Duty and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

NOTE: Removal steps in this procedure may contain installation details.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
NOTE: Install new clamp if necessary.

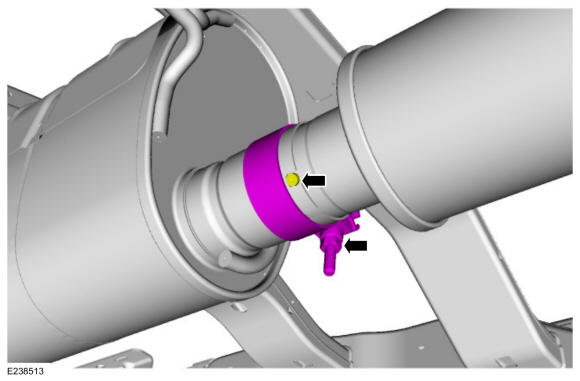

NOTE: During assembly, make sure the tab is fully seated in the notch on the pipe.

Loosen the exhaust intermediate pipe-to-rear muffler pipe clamp.

Torque: 41 lb.ft (55 Nm)

Courtesy of FORD MOTOR COMPANY

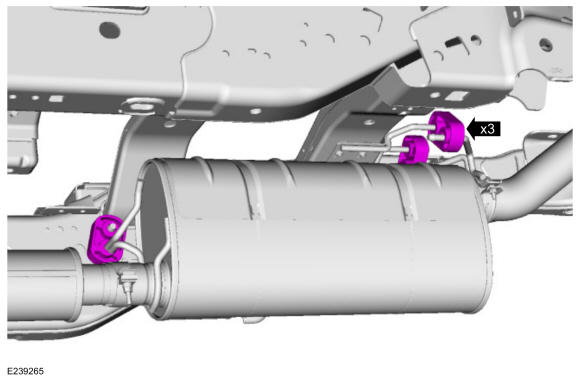

Disconnect the rear muffler isolators.

Courtesy of FORD MOTOR COMPANY
NOTE: If removing you will need a second person, if not position exhaust aside with a ratchet strap.

Remove the rear muffler tailpipe isolator bolts and remove the rear muffler.

Torque: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY
