Condenser Inlet Line - 6.7L Power Stroke Diesel: Removal
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
During the removal of components, cap, tape or otherwise appropriately protect all openings to prevent the ingress of dirt or other contamination. Remove protective materials prior to installation.
NOTE:
Removal steps in this procedure may contain installation details.
- Recover the refrigerant. Refer to the appropriate Recovery procedure in Air Conditioning (A/C) System Recovery, Evacuation and Charging

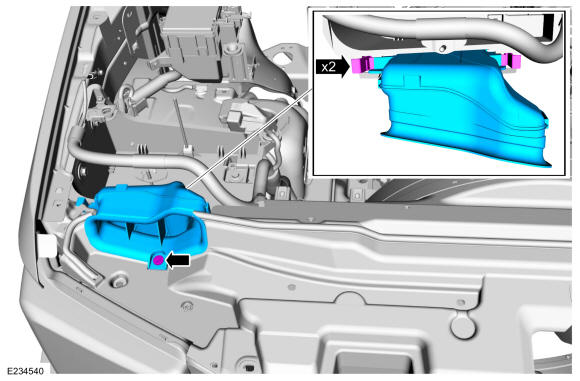

- Remove the pushpin, release the retainers and remove the air cleaner upper intake duct.

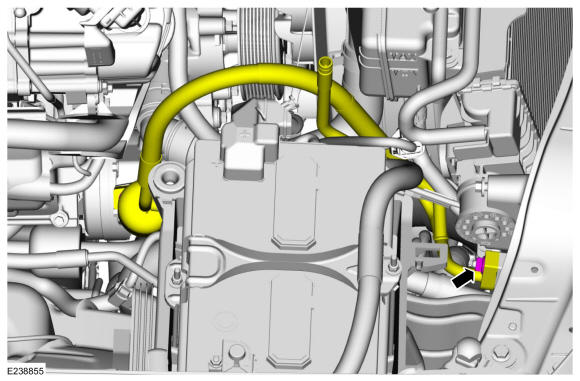

- Remove the A/C compressor outlet line nut and disconnect the fitting.
- Make sure to cover any open ports to prevent debris from entering the system.
Torque: 159 lb.in (18 Nm)
- Make sure to cover any open ports to prevent debris from entering the system.
- Remove both headlamp assemblies. Refer to: Headlamp Assembly .
-

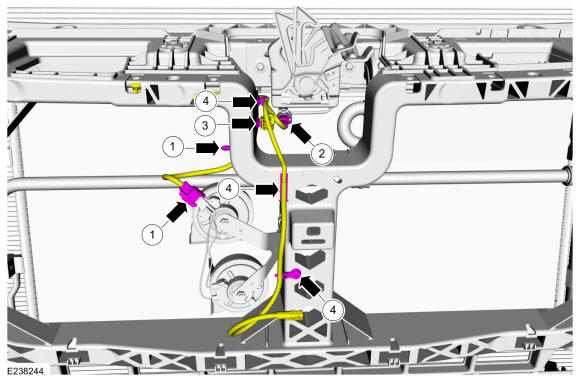

- All Vehicles. Disconnect the horn electrical connector and detach the wiring harness retainer.
- Vehicles Equipped With Hood Ajar Switch. Disconnect the electrical connector.
- Vehicles Not Equipped With Hood Ajar Switch. Detach the wiring harness retainer.

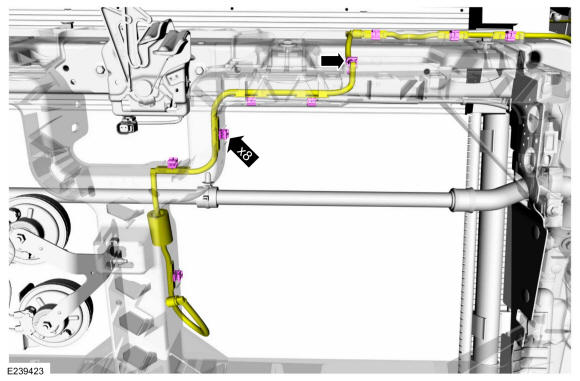

- Vehicles With Park Aid Camera. Detach the wiring harness retainers.

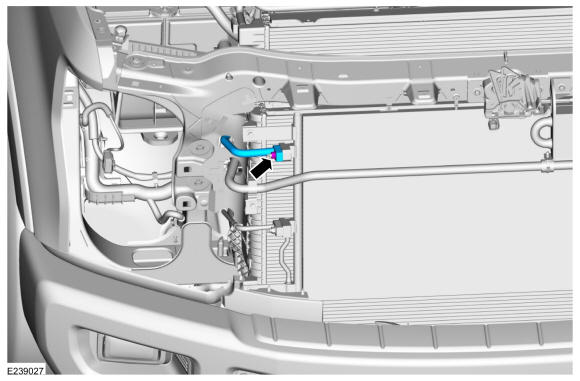

- Detach the pin-type retainer, release the clips and position the washer fluid hose aside.

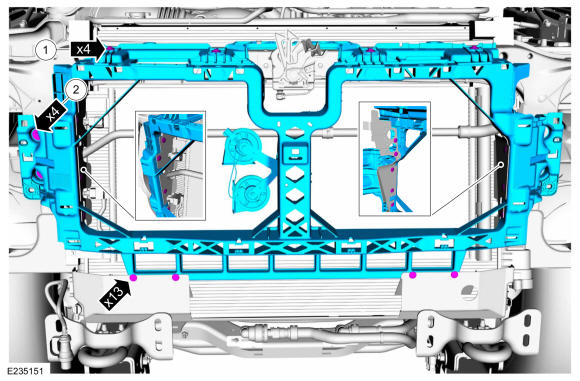

- Remove the bolts, push-pins and the radiator grille bracket.
Torque: Stage 1: 62 lb.in (7 Nm) | Stage 2: 22 lb.ft (30 Nm)
- Remove the retainer and the condenser inlet line.
- Make sure to cover any open ports to prevent debris from entering the system.
Torque: 159 lb.in (18 Nm)
- Make sure to cover any open ports to prevent debris from entering the system.
