Condenser - 6.7L Power Stroke Diesel: Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: During the removal of components, cap, tape or otherwise appropriately protect all openings to prevent the ingress of dirt or other contamination. Remove protective materials prior to installation.

NOTE: Removal steps in this procedure may contain installation details.

Recover the refrigerant. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging .
Remove both headlamp assemblies. Refer to: Headlamp Assembly .
1. All Vehicles. Disconnect the horn electrical connector and detach the wiring harness retainer.
2. Vehicles Equipped With Hood Ajar Switch. Disconnect the electrical connector.
3. Vehicles Not Equipped With Hood Ajar Switch. Detach the wiring harness retainer.
4. Vehicles With Park Aid Camera. Detach the wiring harness retainers.
Courtesy of FORD MOTOR COMPANY
Detach the pin-type retainer, release the clips and position the washer fluid hose aside.

Courtesy of FORD MOTOR COMPANY

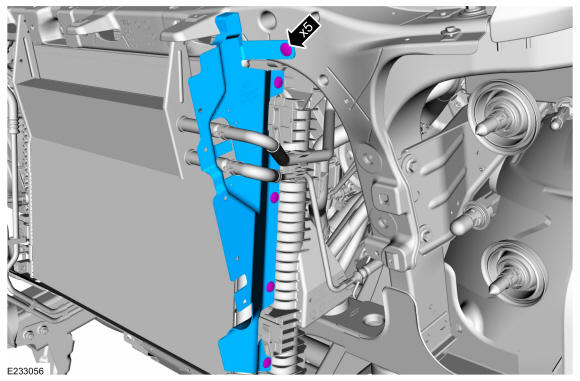

Remove the bolts, push-pins and the radiator grille bracket.
Torque: Stage 1: 62 lb.in (7 Nm) | Stage 2: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY

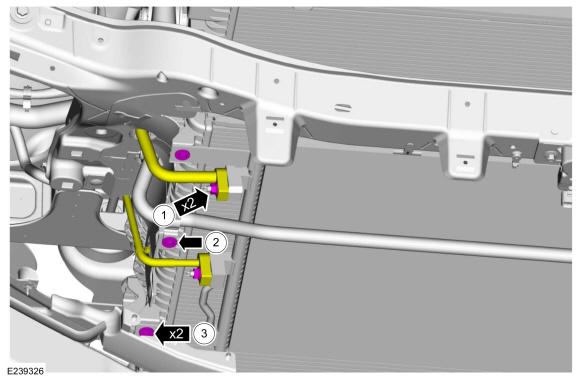

1. Remove the A/C condenser inlet and outlet line nuts and disconnect the fittings.
  Torque: 159 lb.in (18 Nm)
2. Remove the bolt.
3. Remove the condenser mounting bolts.
  Torque: 89 lb.in (10 Nm)
- Make sure to cover any open ports to prevent debris from entering the system.
Courtesy of FORD MOTOR COMPANY
Remove the push-pins and the LH air deflector.

Courtesy of FORD MOTOR COMPANY

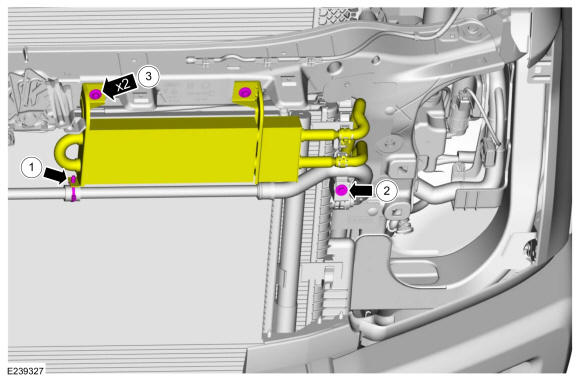

1. Remove the coolant hose support retainer.
2. Remove the bolt.
3. Remove the power steering cooler bolts.
  Torque: 26 lb.ft (35 Nm)
Courtesy of FORD MOTOR COMPANY

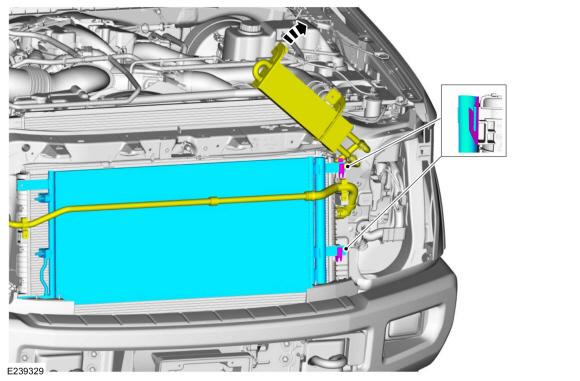

Position the power steering cooler aside and remove the condenser.
