Center Registers: Removal
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
All vehicles
- Remove the HVAC control module. Refer to: Heating, Ventilation and Air Conditioning (HVAC) Control Module .
Vehicles equipped with floor console

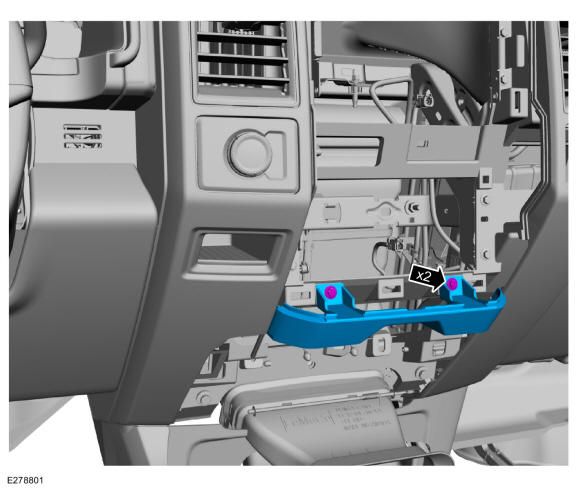

- Remove the bolts and the instrument panel lower finish panel.
Torque: 48 lb.in (5.4 Nm)
Vehicles without floor Console

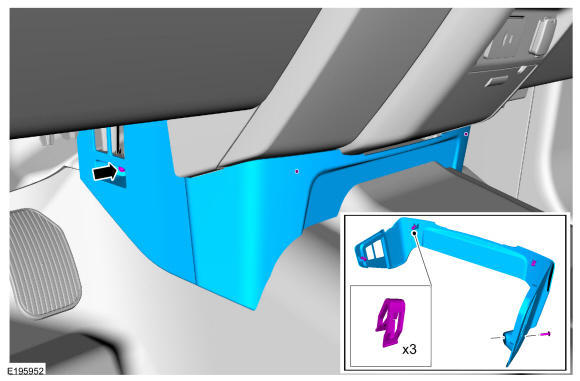

- Remove the screw, detach the clips and remove the center instrument panel lower finish panel.
Vehicles equipped with floor console
-

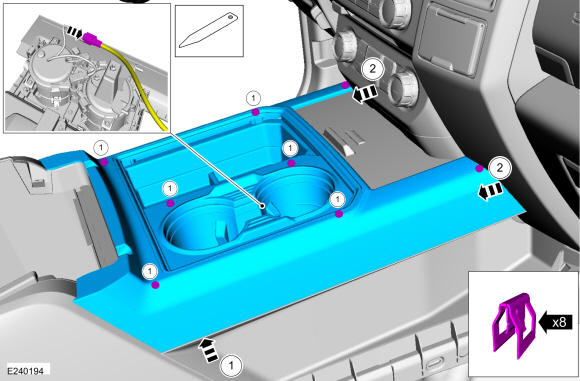

- Release the 6 clips working from the rear of the trim panel forward.
- Release the 2 clips that attach to the instrument panel by pulling rearward and remove the trim panel.
All vehicles
-
NOTE: Vehicle with floor console shown, without floor console similar.

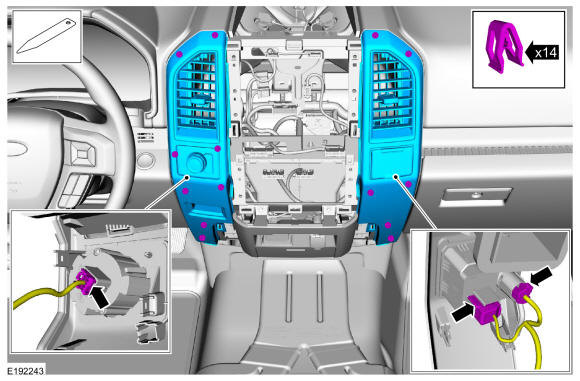

Release the clips, remove the instrument panel center finish panels and disconnect the electrical connectors. Use the General Equipment: Interior Trim Remover
