Air Conditioning (A/C) Clutch and Air Conditioning (A/C) Clutch Field Coil

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations, refer to OEM COLOR CODING

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	412-001 (T71P-19703-B)Remover, Compressor Pulley

Activation

Remove the A/C compressor. Refer to the appropriate procedure in REMOVAL AND INSTALLATION
NOTE: If equipped with spring rubber clutch.

Using the universal clutch holding tool, hold the clutch and remove the A/C clutch disc and hub bolt.
- For fixed compressor
  Torque: 177 lb.in (20 Nm)
- For EVDC compressor
  Torque: 128 lb.in (14.5 Nm)
Courtesy of FORD MOTOR COMPANY
NOTE: If equipped with spring plate clutch.
- Hold the A/C compressor shaft.
- Rotate the A/C clutch hub counter clockwise to remove.
- For fixed compressor
  Torque: 177 lb.in (20 Nm)
- For EVDC compressor
  Torque: 128 lb.in (14.5 Nm)
Courtesy of FORD MOTOR COMPANY
NOTE: Replacing the snap ring is only necessary when installing a new component.

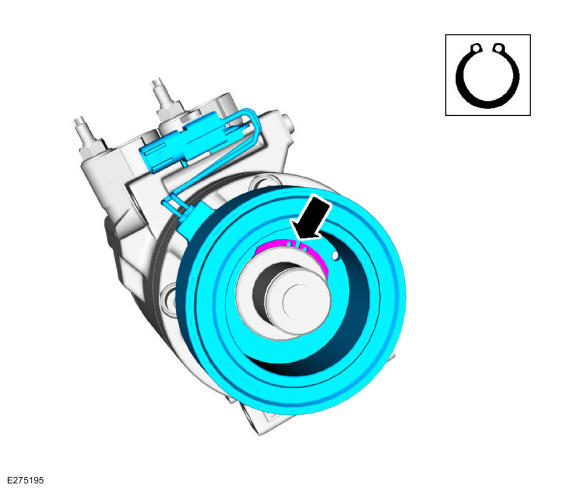

Remove the A/C compressor pulley snap ring.

Courtesy of FORD MOTOR COMPANY
NOTE: Do not use air tools. Damage to the A/C clutch pulley or A/C compressor may result.

Remove the A/C compressor pulley. Install Special Service Tool: 412-001 (T71P-19703-B) Remover, Compressor Pulley.

Courtesy of FORD MOTOR COMPANY
Remove the A/C clutch field coil electrical connector retainer.
Torque: 35 lb.in (4 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Replacing the snap ring is only necessary when installing a new component.

Remove the A/C clutch field coil snap ring, and remove the clutch field coil.

Courtesy of FORD MOTOR COMPANY
- Visually inspect the A/C clutch disc and hub, compressor pulley and clutch field coil for damage.
- Inspect for physical damage, including cracked or melted components or discoloration due to excessive heat.
- Inspect for excessive wear, including grooving in the A/C clutch disc and hub or the compressor pulley that is more than fingernail depth.
- Inspect for roughness in the A/C compressor pulley bearing.
To install, reverse the steps in this procedure.
NOTE: Spring plate clutch similar.

Measure and adjust the clutch air gap by removing or adding clutch disc and hub spacers. Refer to Air Conditioning (A/C) Clutch Air Gap Adjustment

Courtesy of FORD MOTOR COMPANY
