Crankshaft End Play

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations, refer to OEM COLOR CODING

General Equipment

Dial indicator

Dial indicator fixture

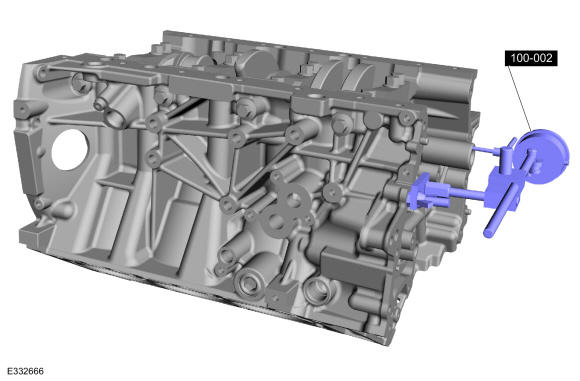

Install the dial indicator and holding tool.

Courtesy of FORD MOTOR COMPANY

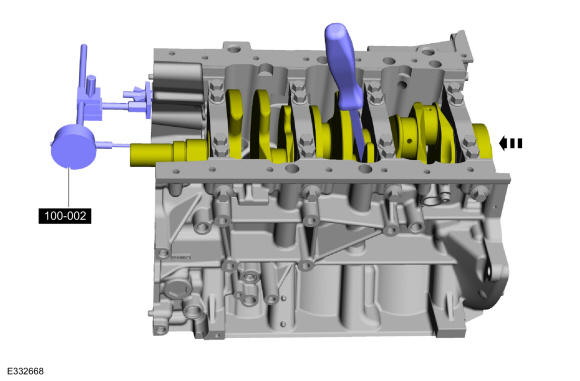

1. Position the crankshaft to the rear of the cylinder block.
2. Zero the dial indicator.
Courtesy of FORD MOTOR COMPANY

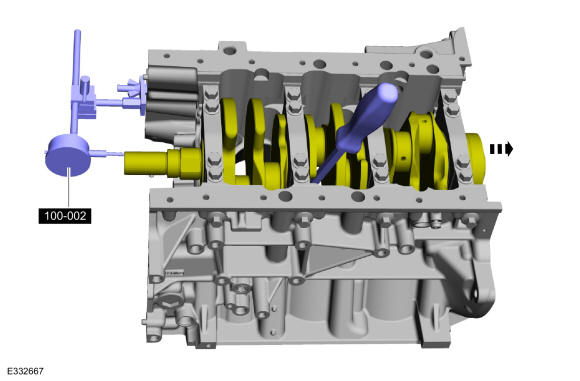

1. Position the crankshaft to the front of the cylinder block.
2. Record the crankshaft end play. If the crankshaft end play exceeds the specified range, install new parts as necessary. For additional information, refer to: Specifications in the appropriate Engine article.
Courtesy of FORD MOTOR COMPANY
Remove the dial indicator and holding tool.
