Turbine Shaft Speed (TSS) Sensor: Installation

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

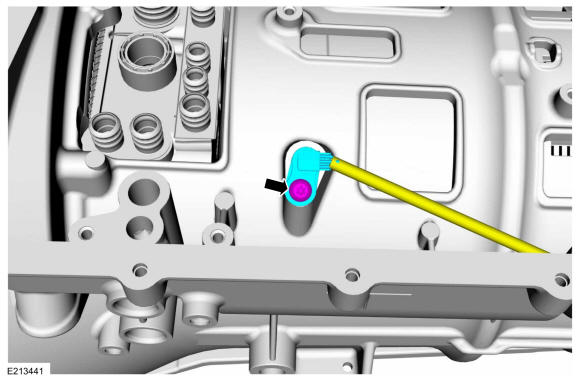

  1. Install the TSS sensor and install the bolt.

    Torque:

    97 lb.in (11 Nm)

    GFD408931Courtesy of FORD MOTOR COMPANY
  2. Install the Main Control Valve Body. Refer to: Main Control Valve Body .
